Assemble Cylinder Head

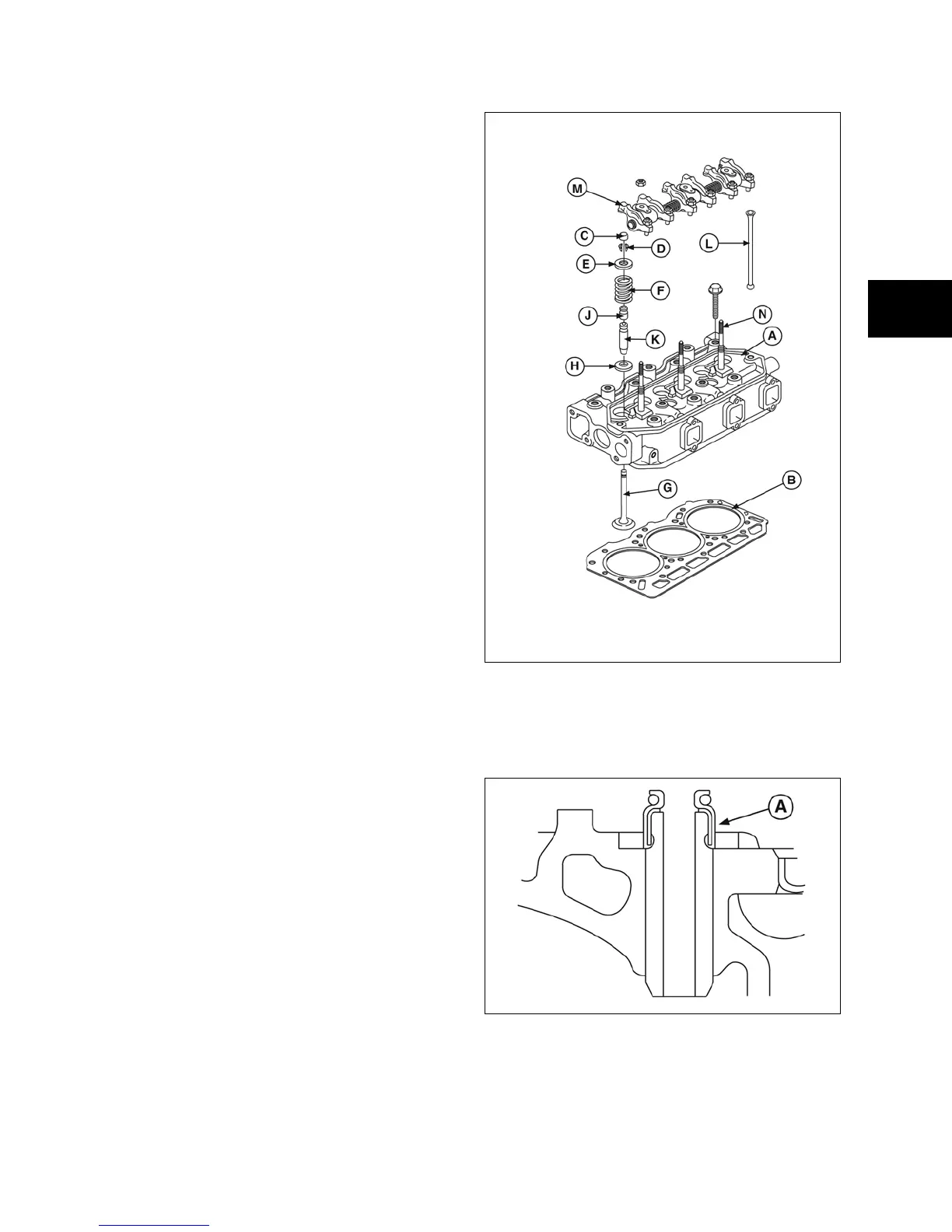

Cylinder Head Components (Figure 25)
• (A) - Cylinder Head
• (B) - Cylinder Head Gasket
• (C) - Valve Stem Cap
• (D) - Valve Spring Retainer Locks
• (E) - Valve Spring Retainer
• (F) - Valve Spring
• (G) - Valve
• (H) - Valve Spring Seat
• (J) - Valve Stem Seal
• (K) - Valve Guide
• (L) - Push Rod
• (M) - Rocker Arm Assembly
• (N) - Rocker Arm Stud
Figure 25
1. Install new valve stem seals (A, Figure 26).
Oil inner surface and lip of seal before
installing. Press seal on to valve guide
bushing until it bottoms.
Figure 26
2. Install valve spring seats (Figure 27).
