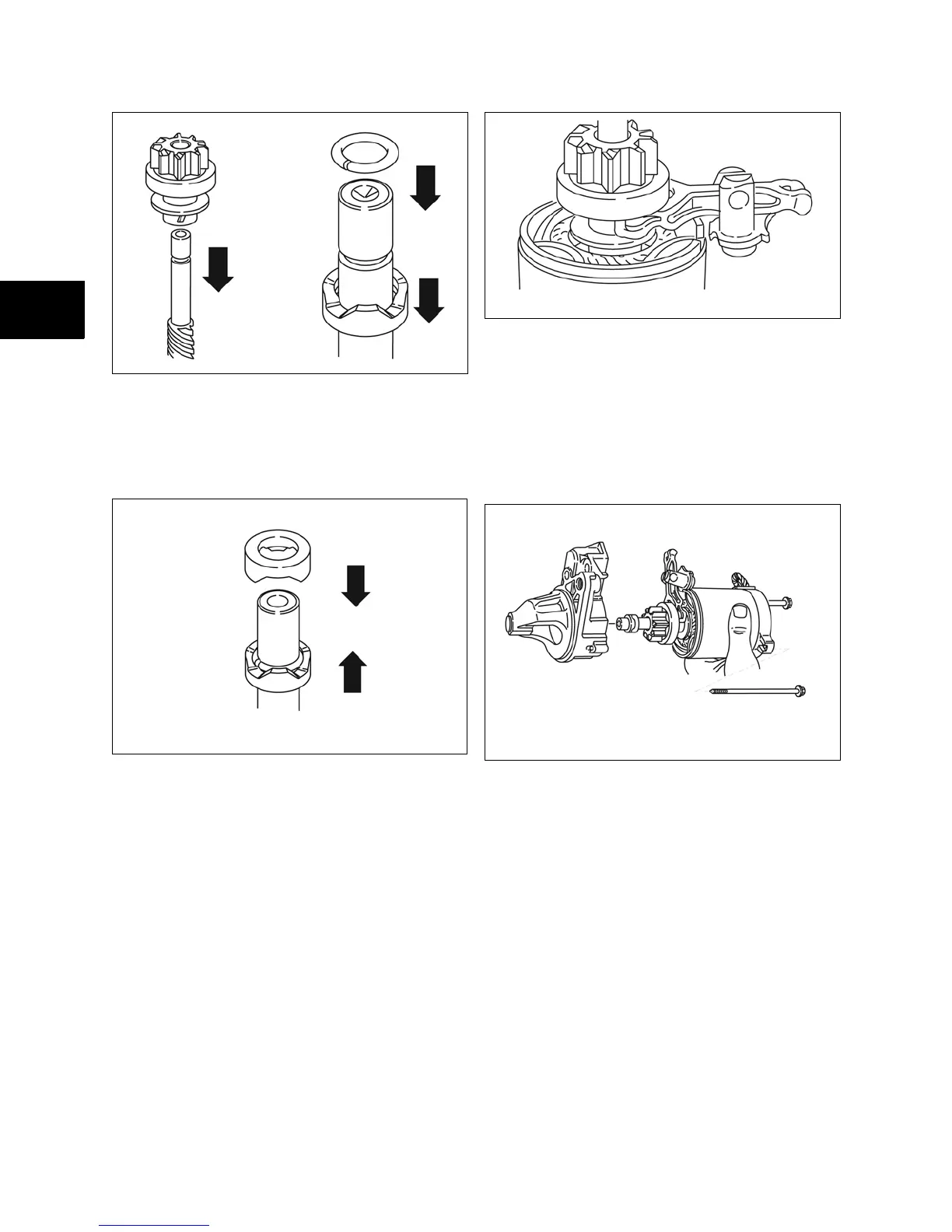

130
11
Figure 55
7. Install drive housing (Figure 56).
8. Install thru bolts and torque to value listed in
Section 14 - Engine Specifications.
9. Install solenoid.
Figure 56
Disassemble Starter Motor
If starter motor is to be disassembled to inspect
brushes or commutator, DO NOT remove drive
housing.
1. Remove solenoid.
2. Place drive housing in a vise (Figure 57).
NOTE: Take care not to damage drive housing or
mounting surface.
Figure 57
3. Remove thru bolts and lift off end cap.
4. Remove brush retainer plate (A, Figure 58).
5. Remove brushes and springs from brush
holder (B).
6. Remove brush holder. If brush holder or
retainer plate are damaged they must be
replaced.
Figure 58
7. Remove starter housing (A, Figure 59).
8. Remove armature (B) and drive lever (C).
