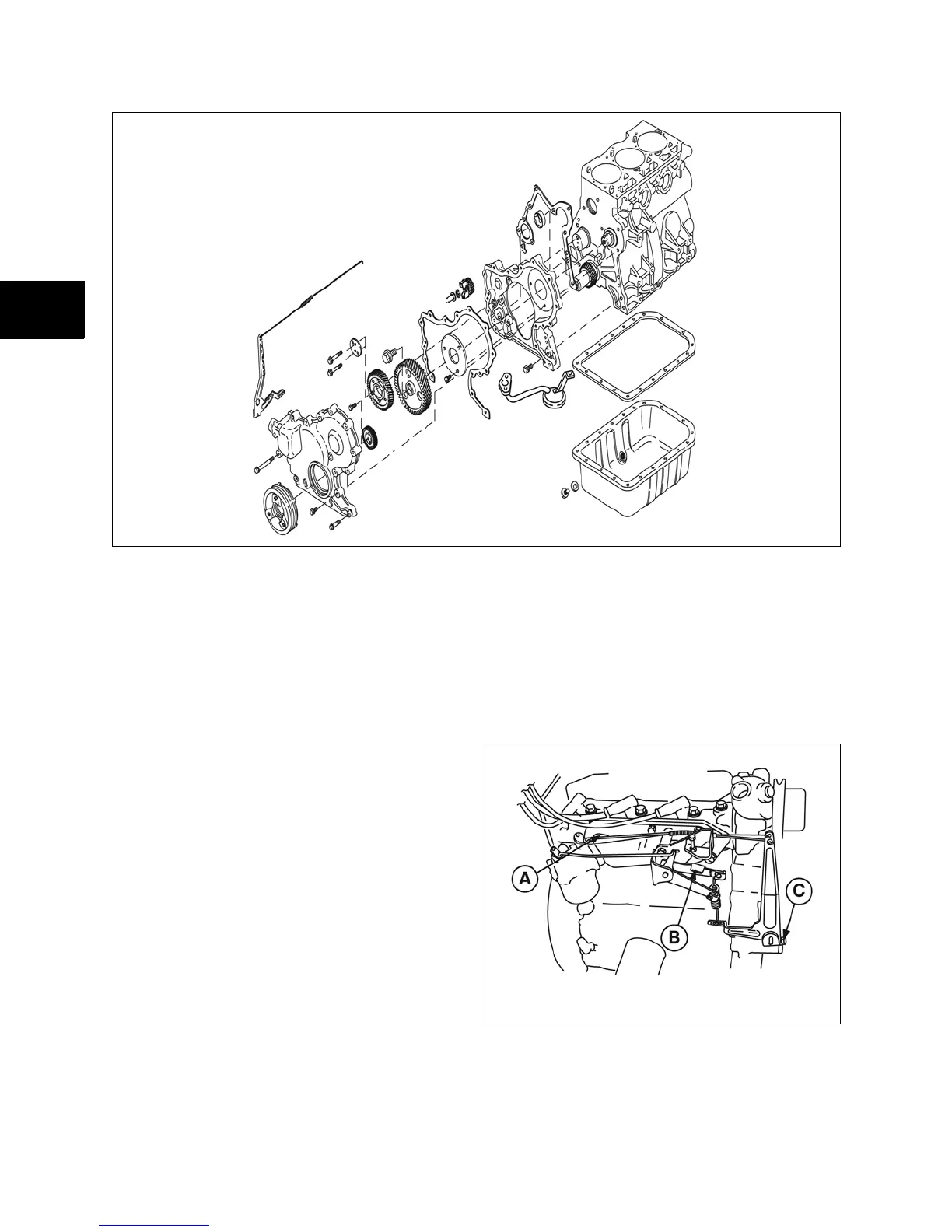

Remove Timing Gear Cover and Gears
NOTE: Make sure the Number 1 cylinder is at Top
Dead Center (TDC), compression stroke. See
Section 2.
1. Remove V-belt and fan (if equipped).
2. Drain oil from engine.
NOTE: Before removing governor spring, note hole
position of governor spring in governor lever.
3. Remove governor link spring (A, Figure 1)
and governor link from carburetor.
4. Remove governor spring from governor lever
(B).
5. Loosen nut (C) and remove governor lever
from governor shaft.
Figure 1
TIMING GEARS, GEAR CASE, ELECTRONIC GOVERNOR
