Remove Cylinder Head
1. Drain cooling system and disconnect radiator
hoses and bypass hose at water pump.
2. Remove the alternator adjusting bracket
screw (A, Figure 1), V-belt (B), and fan (C),
from the engine.

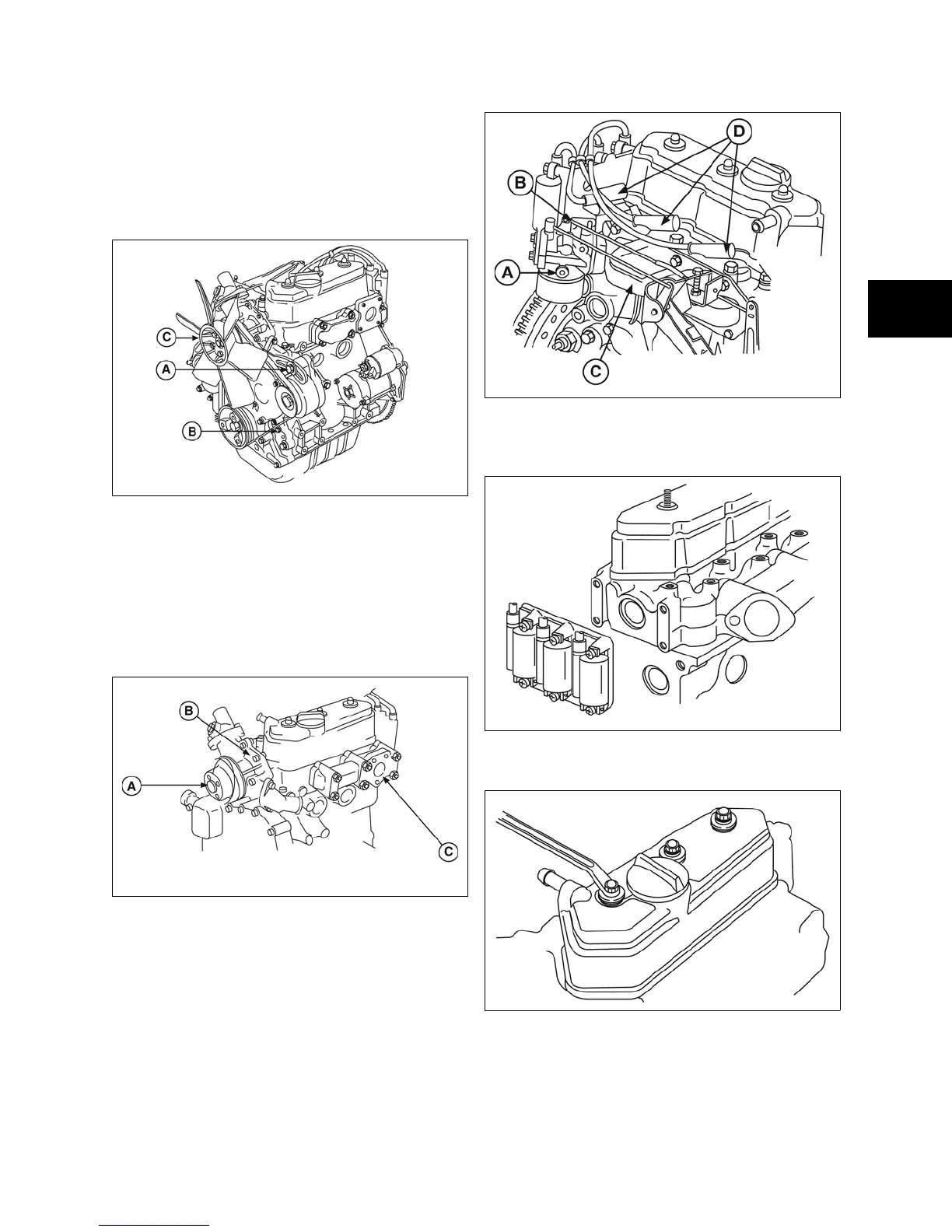

Figure 1
3. Remove the water pump pulley (A, Figure 2),
water pump (B), and exhaust manifold (C)
from the engine.
NOTE: Remove the exhaust system before
removing exhaust manifold.
Figure 2
4. Remove the fuel line (A, Figure 3) and
governor link and spring (B).
5. Remove the intake manifold (C) and spark
plug wires and spark plugs (D).
Figure 3
6. Remove the ignition coil bracket (Figure 4)
and the ignition coils.
Figure 4
7. Remove the valve cover (Figure 5).
Figure 5
8. Set the Number 1 piston at Top Dead Center
(TDC).
