ERROR CODE DIAGNOSTICS
This screen provides a history of any error
messages that were generated. The control
displays the current hours so an approxi-
mate time of occurrence may be deter-
mined. The hours counter is reset to zero
after the semi-annual fire system inspection
has been performed.
POWER
PARTS AND SERVICE SUPPLIED BY AUTHORIZED BROASTER DISTRIBUTORS
BROASTER COMPANY ● BELOIT, WI USA
Diagnostics
OK
Code
Hours shown after last
Inspection alarm reset
Current hours: 337
Description Hours
Serial Number: 123456789
Install Date: 09/29/2020
Firmware Version 0.09
20 Hi Temperature 313
20 Hi Limit Trip 312
20 Heater Fault 309
20 Open Probe 309
Airflow Error 300
20
SERVICING THE SMARTTOUCH
DISPLAY

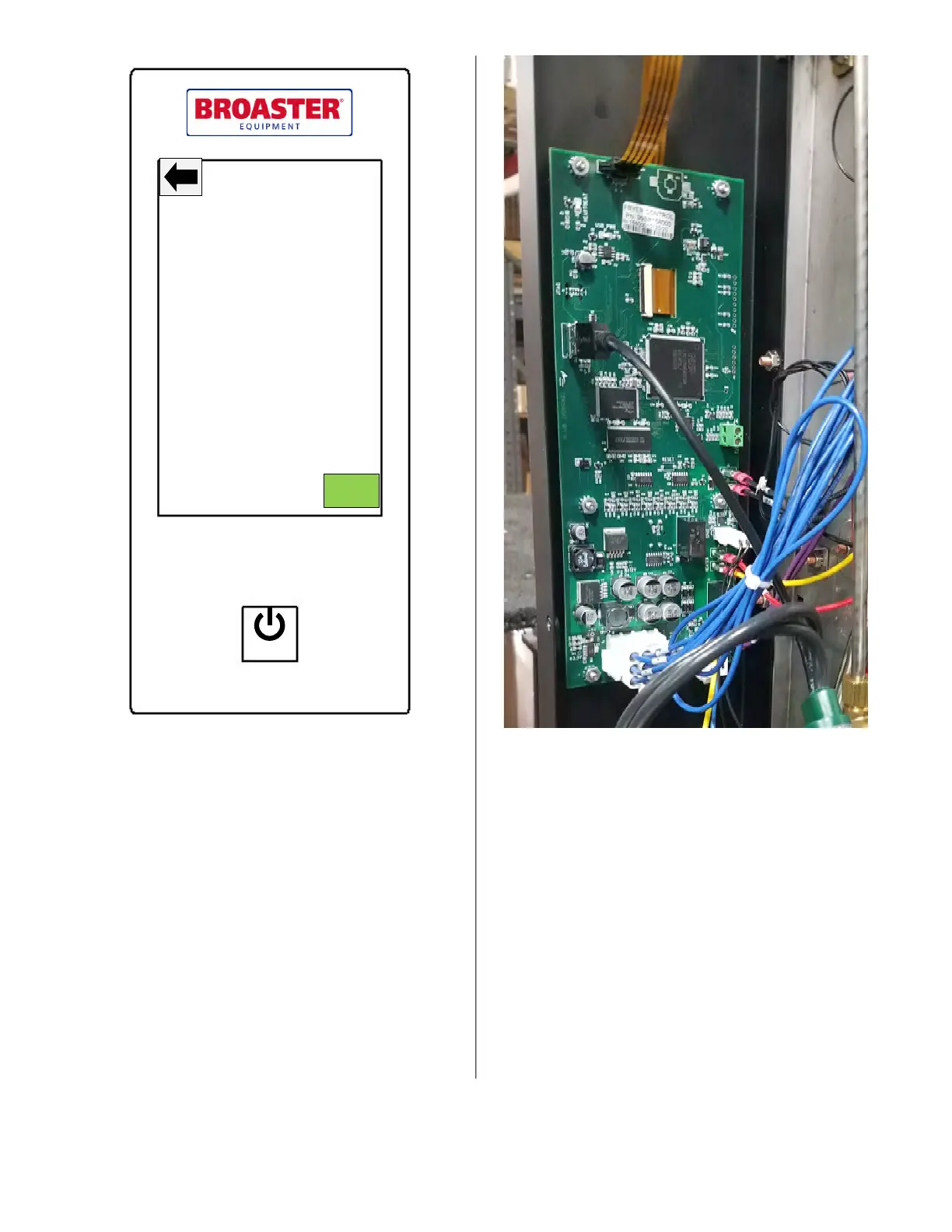

The display PCB may be replaced by
removing the wire terminations and
unscrewing the 6 keps nuts that attached it
to the chassis. Order the following item:
18107 CONTROL, TOUCHSCREEN, VF
If the touchscreen needs to be replaced,
order one of the following items.
K18108 ASM, CHASSIS, W/ OVERLAY,
VF2
K18109 ASM, CHASSIS, W/ OVERLAY,
VF3
broaster.com Manual #16501 8/06 Rev 10/20
