Brooks LF80C - Reading and Writing Ranges

Brooks Automation
156 278580 Revision A
11 Accessories LF80C ZeniD RFID Reader
11.1 Antennas Product Manual
03 → 300 mm
05 → 500 mm
10 → 1,000 mm
15 → 1,500 mm
11.1.2 Reading and Writing Ranges
The following reading/writing ranges are measured with a 32 mm glass
transponder (read only, read/write, multipage). If you use a multipage
transponder, the diagrams are only valid for page 1 of the multipage
transponder.

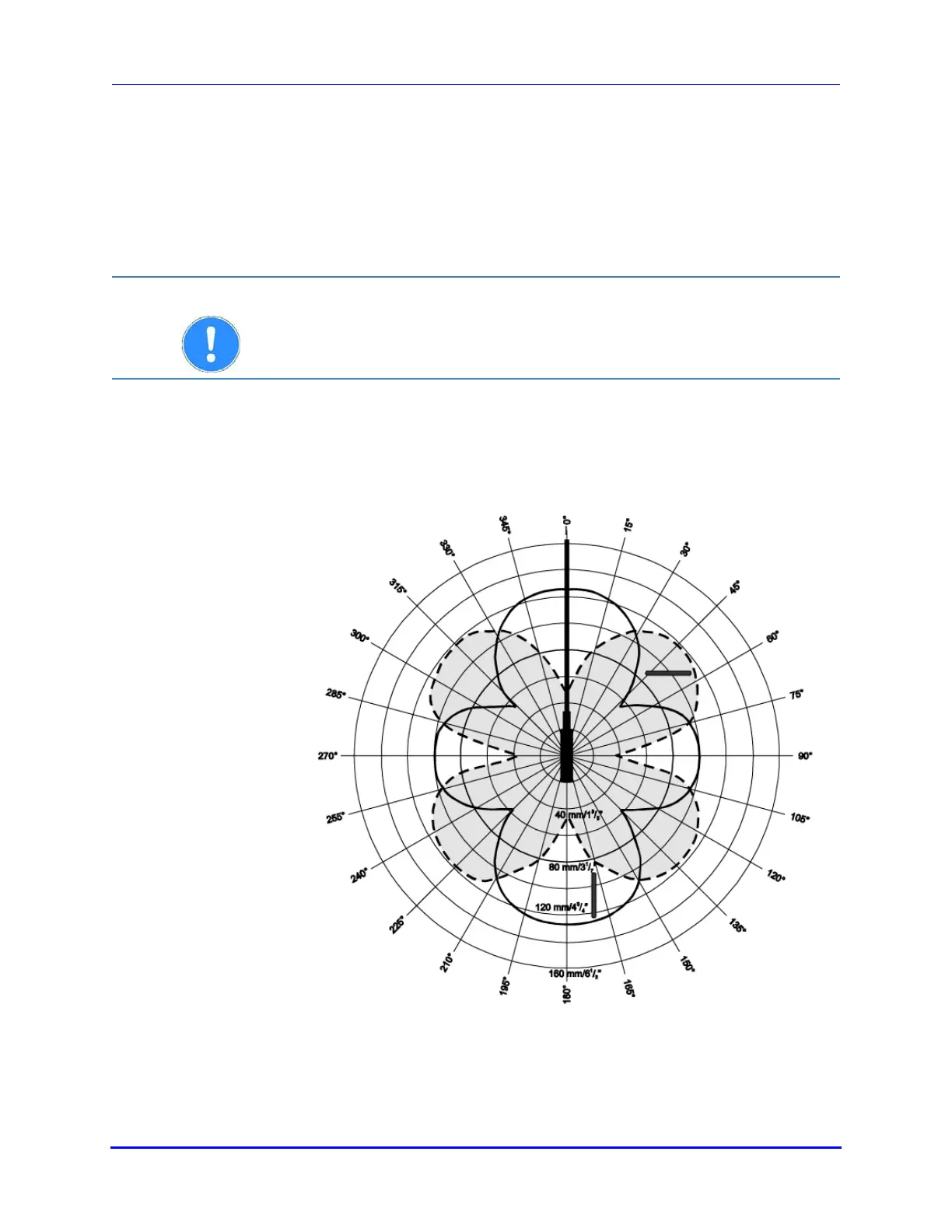

Reading range micro
antenna
________ Transponder parallel to antenna
- - - - - - - Transponder vertical to antenna
ATTENTION
If the transponder is very close to the antenna the transponder may be
de-tuned by the metal of the antenna and reading/writing is not
possible. We recommend keeping a minimum distance between
transponder and antenna of about 10 mm.
