6 Installation LF80C ZeniD RFID Reader
6.6 Power Supply Product Manual
6.6 Power Supply
The device can be connected to an interior DC power circuit of the
equipment or to a DC adapter.
Once the device is connected to the power supply, the power LED lights up.
If the LED does not light up, please refer to chapter
Î
Visit us online:
www.brooks.com.

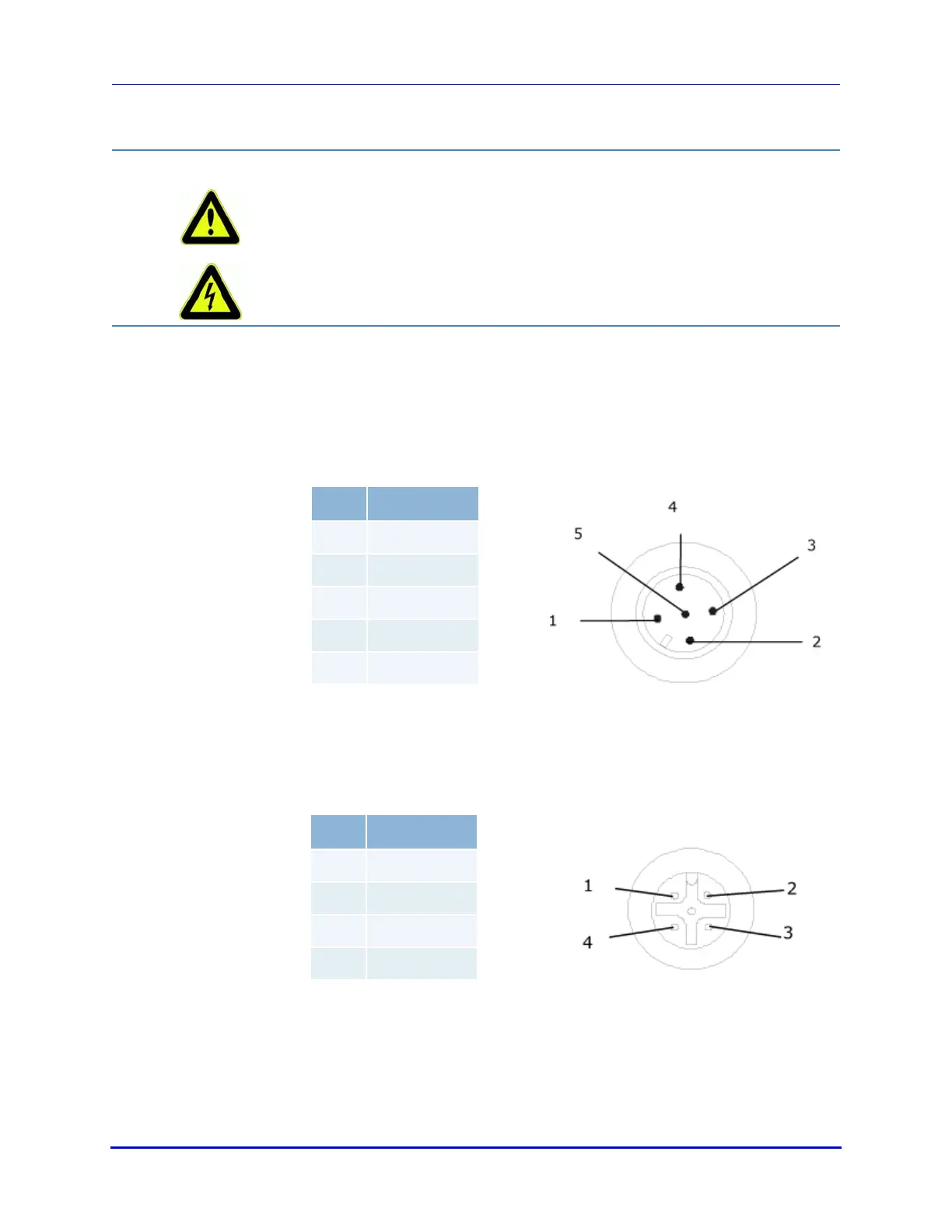

6.7 Terminal Connection
Ethernet interface (M12 d-coded)
DANGER
Risk of death due to dangerous voltage
Risks exist when supplying the device with the incorrect voltage.
Only use cables, plugs and adapters supplied by the manufacturer.
Observe power ratings of the technical data (
Î
Technical Data).
Pin Signal
1 +24 V
2 0 V
3 NC
4 NC
5 NC
PIN DB9
1 Tx +
2 Rx +
3 Tx -
4 Rx #
