Brooks LF80C - Standard Housing for Enclosed Assembly Material (Recommended)

Brooks Automation
278580 Revision A 29
LF80C ZeniD RFID Reader 6 Installation
Product Manual 6.4 Assembly of the Device
6.4.1 Standard Housing for Enclosed Assembly Material
(Recommended)
Required materials
and tools

Enclosed mounting set, containing two mounts, four expanding
rivets and a drilling template

Four cylinder head screws: M4 (EU), UNC 8/32 (USA)

Four dowels (in case of wall mounting)

Appropriate screwdriver

Drilling machine with fitting drill
Assembly
 Drill four holes using the enclosed drilling template.
 When mounting the device on a wall, insert four dowels.

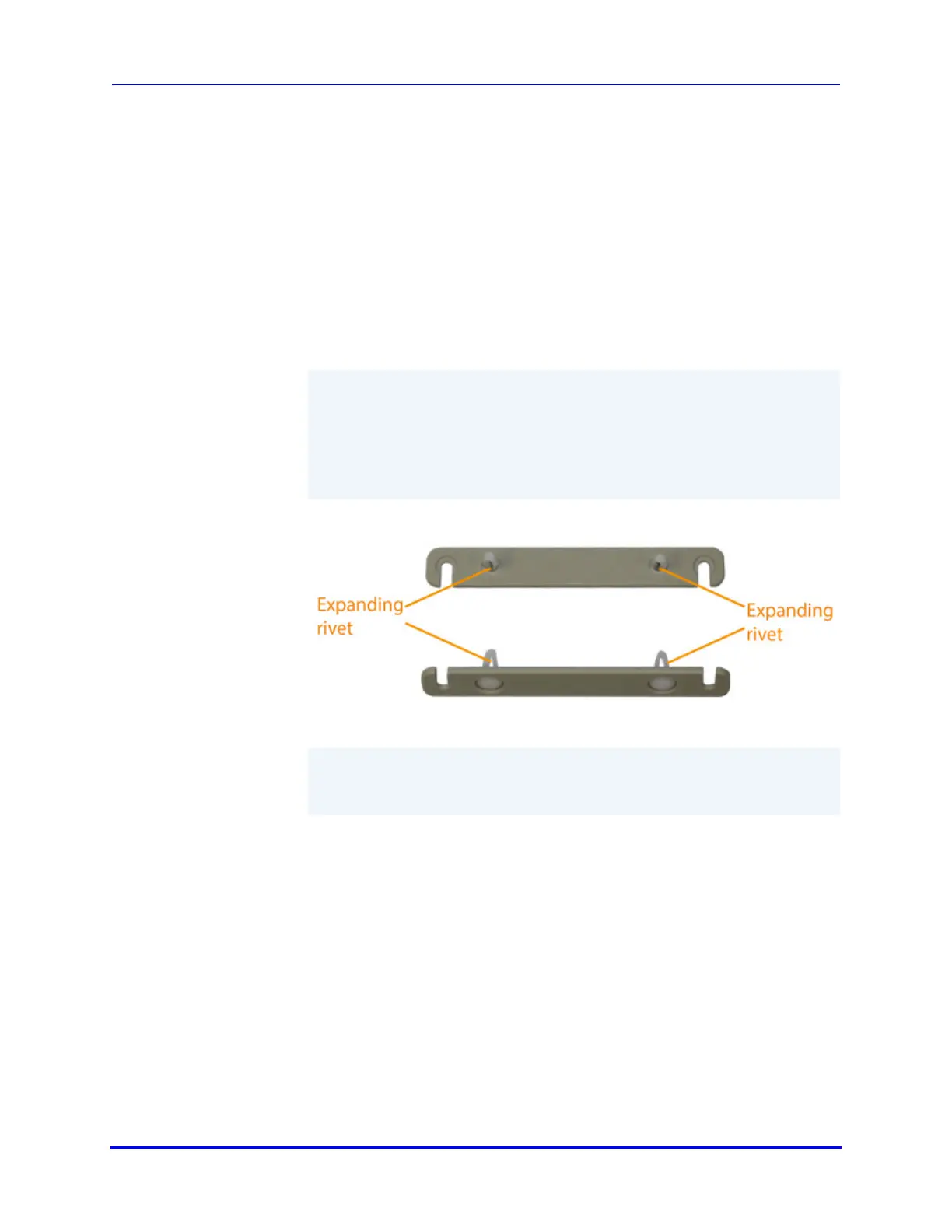

 Insert four expanding rivets into the two mounts as shown in
the image.
 Plug the mounts into the four mounting holes of the device as
shown in the image.
