Brooks LF80C - Assembly of the Device

Brooks Automation
28 278580 Revision A
6 Installation LF80C ZeniD RFID Reader
6.4 Assembly of the Device Product Manual
6.4 Assembly of the Device
Installation

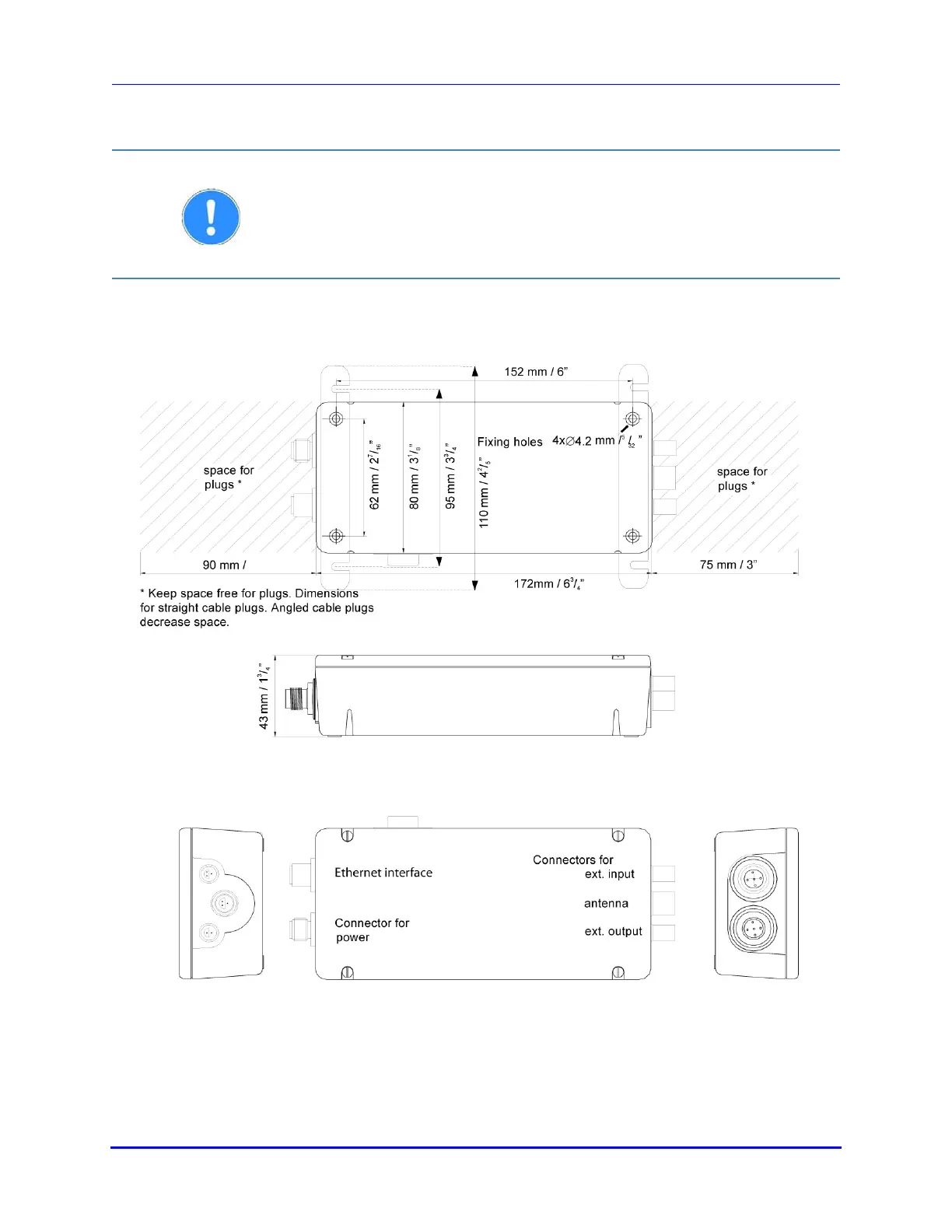

dimensions
ATTENTION
The mounting surface must be stable, non-flammable, dry and clean.
If necessary, clean it before installing the device.
The device must be installed so that air can freely circulate vertically
through the heat sink, and the operating and environmental conditions
specified under
Î
Technical Data are met at all times.
3.54”
