Brooks LF80C - External Input and Output

Brooks Automation
278580 Revision A 39
LF80C ZeniD RFID Reader 6 Installation
Product Manual 6.9 External Input and Output

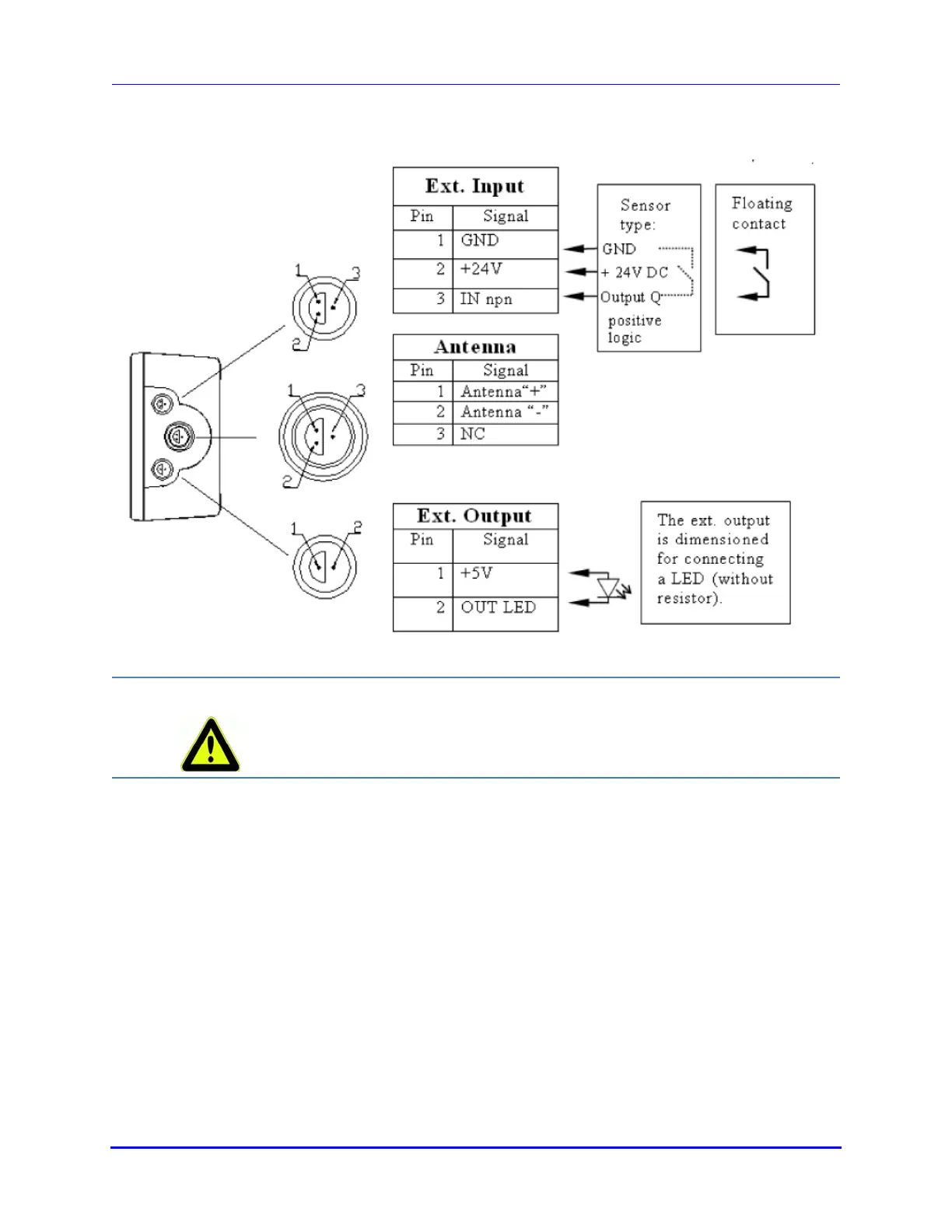

6.9 External Input and Output
ATTENTION
External input must be a floating contact. The current consumption of
the sensor must not exceed 200 mA. The LED output current is approx.
10 mA.
