6 Installation LF80C ZeniD RFID Reader
6.5 Antenna Installation Product Manual
6.5.3 Dimensions for Planning

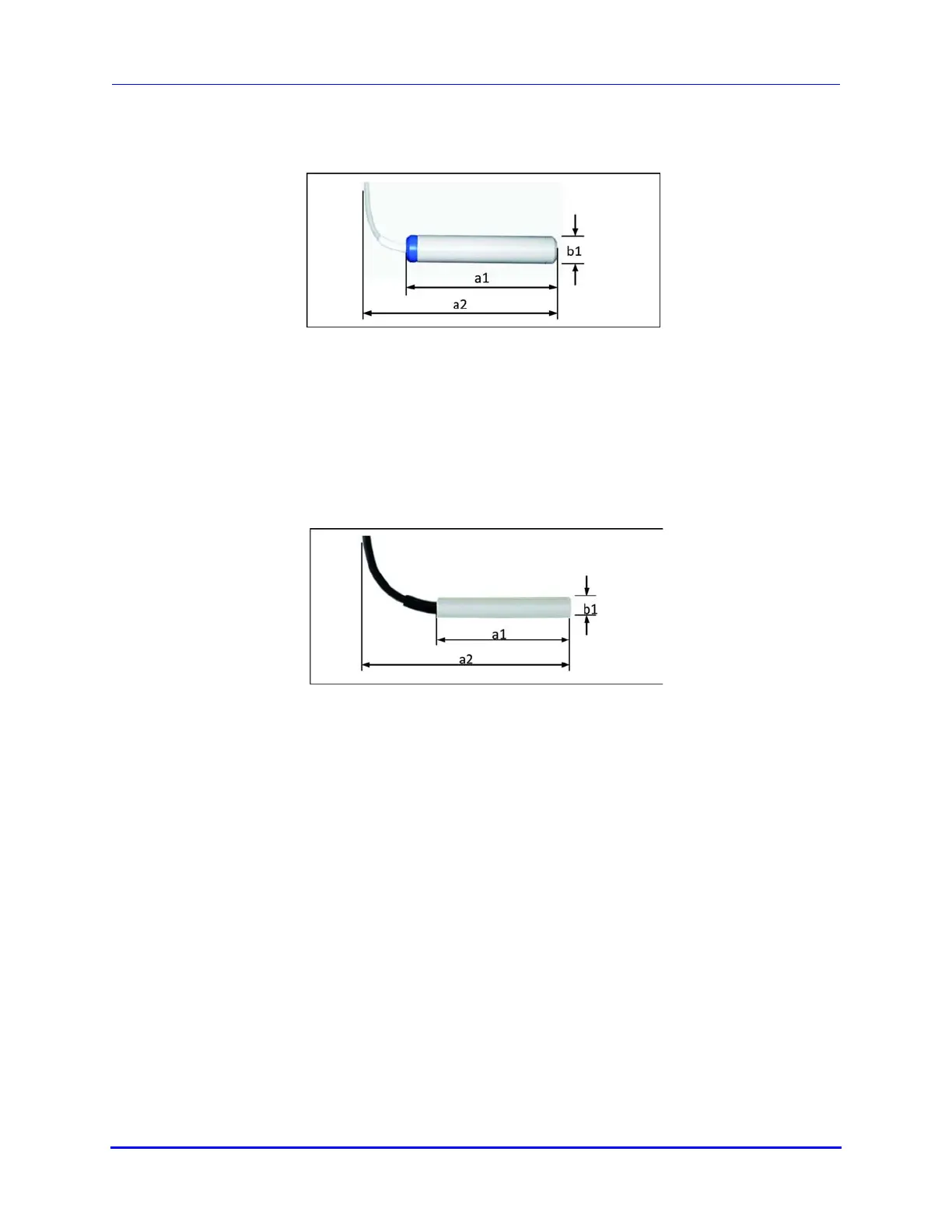

Rod antenna
Mini antenna
a1 Length of antenna cylinder 125 mm
a2 Complete mounting dimensions (cable with 90°
angle)
150 mm
b1 Diameter of antenna cylinder 23.0 mm
a1 Length of antenna cylinder 68 mm
a2 Complete mounting dimensions (cable with 90°
angle)
85 mm
b1 Diameter of antenna cylinder 10.0 mm
