LF80C ZeniD RFID Reader 6 Installation
Product Manual 6.5 Antenna Installation

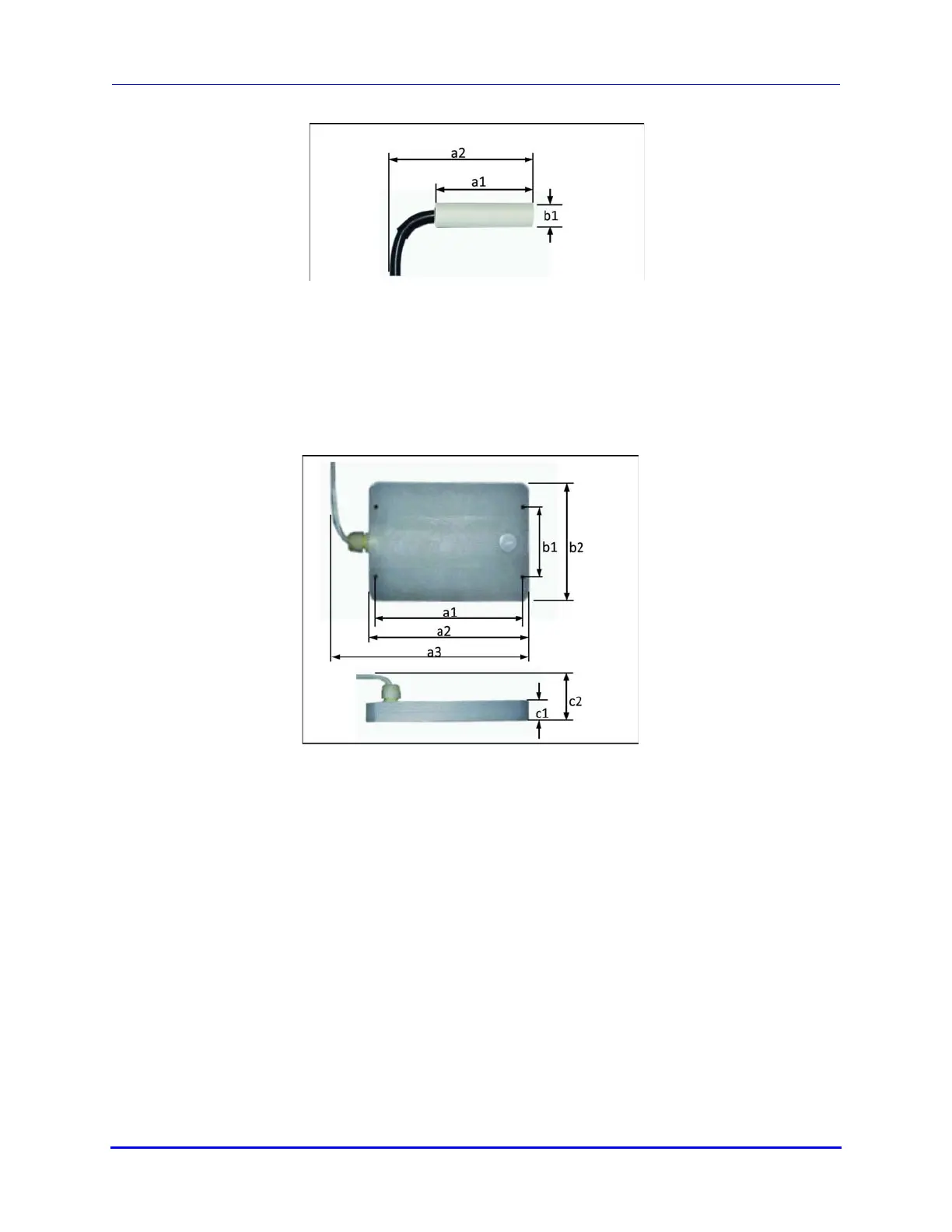

Micro antenna
Frame antenna
a1 Length of antenna cylinder 40 mm
a2 Complete mounting dimensions (cable with 90°
angle)
60 mm
b1 Diameter of antenna cylinder 10.0 mm
a1 Distance between mounting holes (length) 148 mm
a2 Length of frame antenna 161 mm
a3 Complete mounting dimensions length (cable
screwing at the side)
210 mm
b1 Distance between the mounting holes (width) 70 mm
b2 Width of frame antenna 120 mm
c1 Height of frame antenna 19 mm
c2 Complete mounting dimensions height (cable
screwing at the top)
70 mm
