278580 Revision A 37
LF80C ZeniD RFID Reader 6 Installation
Product Manual 6.7 Terminal Connection

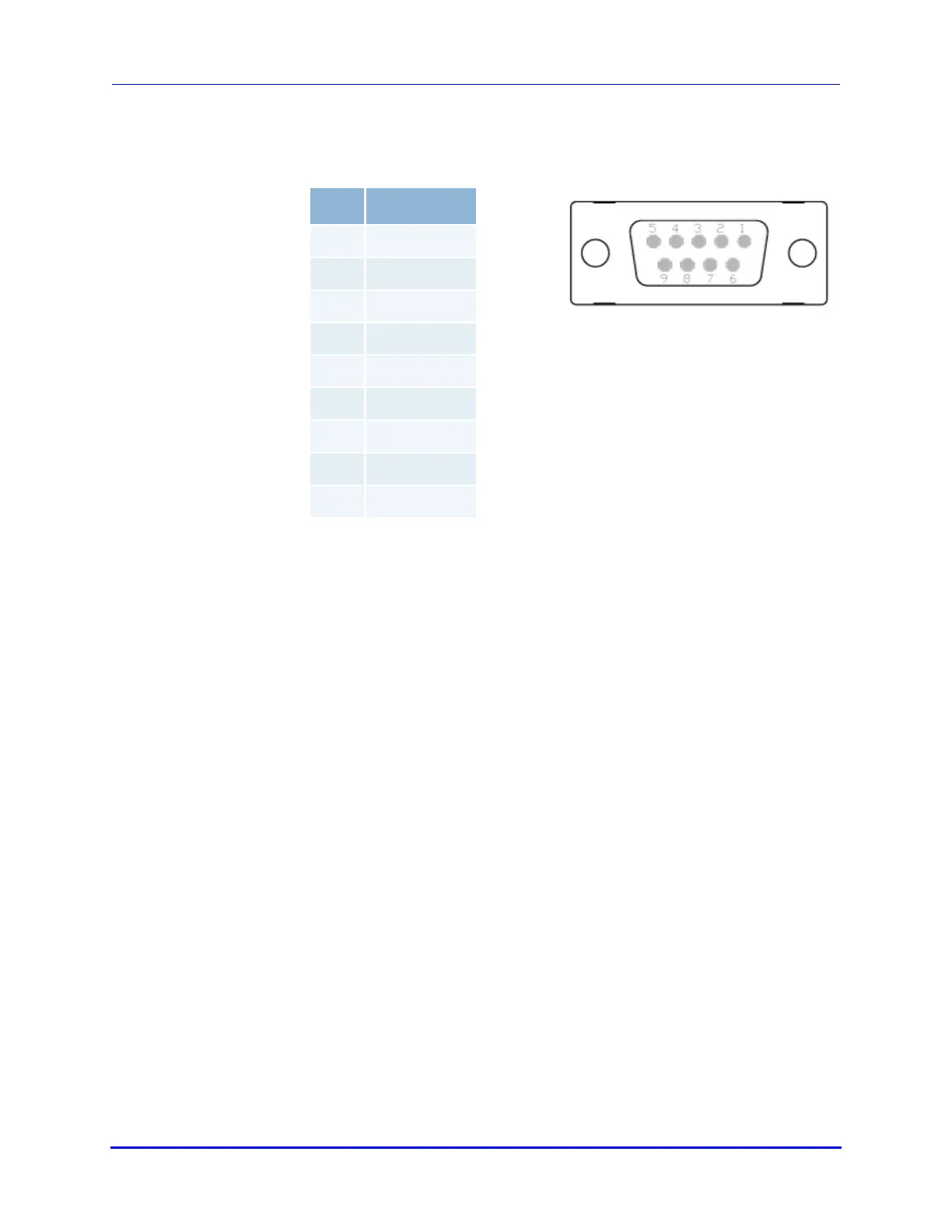

Sub-D female plug (RS232 interface #2)
The serial interface is a Sub-D female plug (9-pin); a serial connection line
(switched 1:1) can be used.
Parameters of the
serial interface
PIN DB9
1 NC
2 TxD
3 RxD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
Baud rate
19,200
Data bits
8
Stopp bit
1
Parity
EVEN (ASCII)
NONE (SECS)
