Brooks Automation
278580 Revision A 31
LF80C ZeniD RFID Reader 6 Installation
Product Manual 6.4 Assembly of the Device
Required materials
and tools
Four cylinder head screws: M4 (EU), UNC 8/32 (USA)
Four dowels (in case of wall mounting)
Appropriate screwdriver
Drilling template (enclosed)
Drilling machine with fitting drill
Assembly
 Drill four holes using the enclosed drilling template.
 When mounting the device on a wall, insert four dowels.

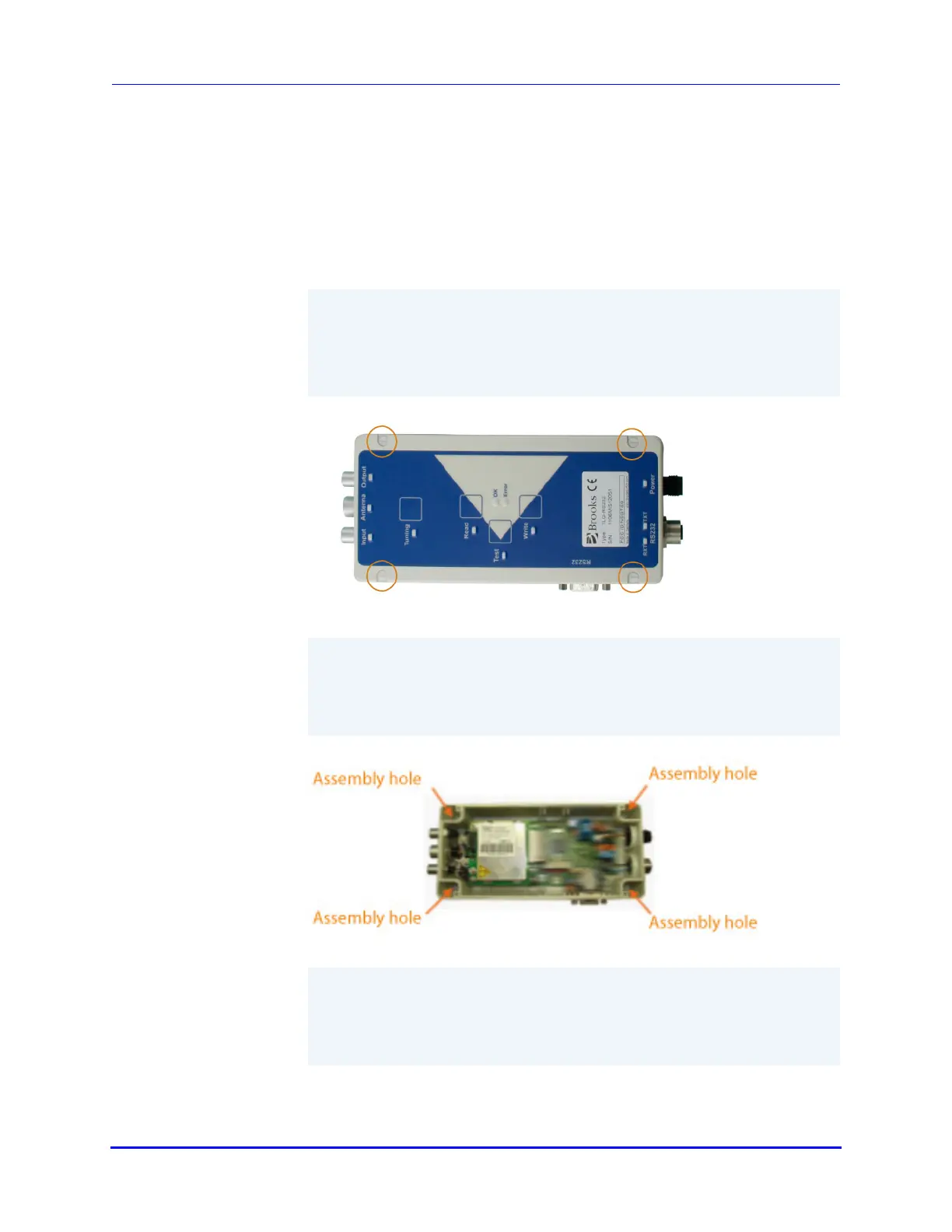

 Unscrew the four housing lid screws.
 Carefully remove the lid.
 Screw the device onto the assembly surface using the four
assembly holes inside the case.
 Screw the housing lid back onto the device.
 Connect the device as described in the section
Indicating
and Operating Elements.
