3-36

Confidential

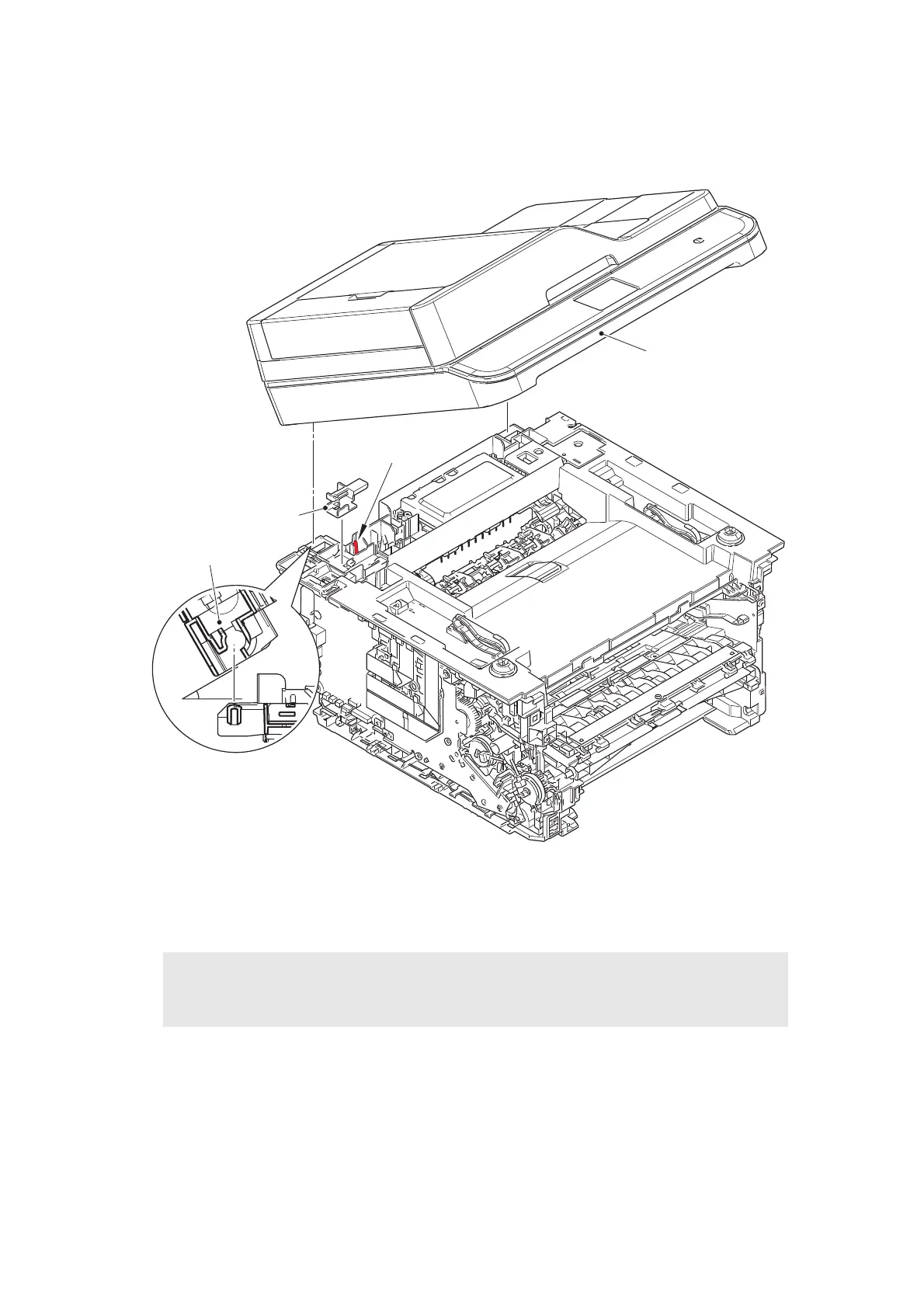

(4) Release the hook to remove the ADF FFC holder while opening the document scanner

unit. Release the each harness from the securing fixtures.

(5) Open the document scanner unit at 30 degrees, and remove it by lifting it up.

Fig. 3-23

Harness routing: Refer to “12. ADF unit - Main PCB ASSY”, “13. Document scanner unit -

Main PCB ASSY”.

Assembling Note:

• If you replaced the document scanner unit, refer to “5. IF YOU REPLACE THE FIRST

SIDE CIS UNIT OR DOCUMENT SCANNER UNIT” in Chapter 4 to configure settings.

Hook

ADF FFC holder

30°

Document scanner unit
