Brother MFC-7380

To Next Page

To Previous Page

3-51

Confidential

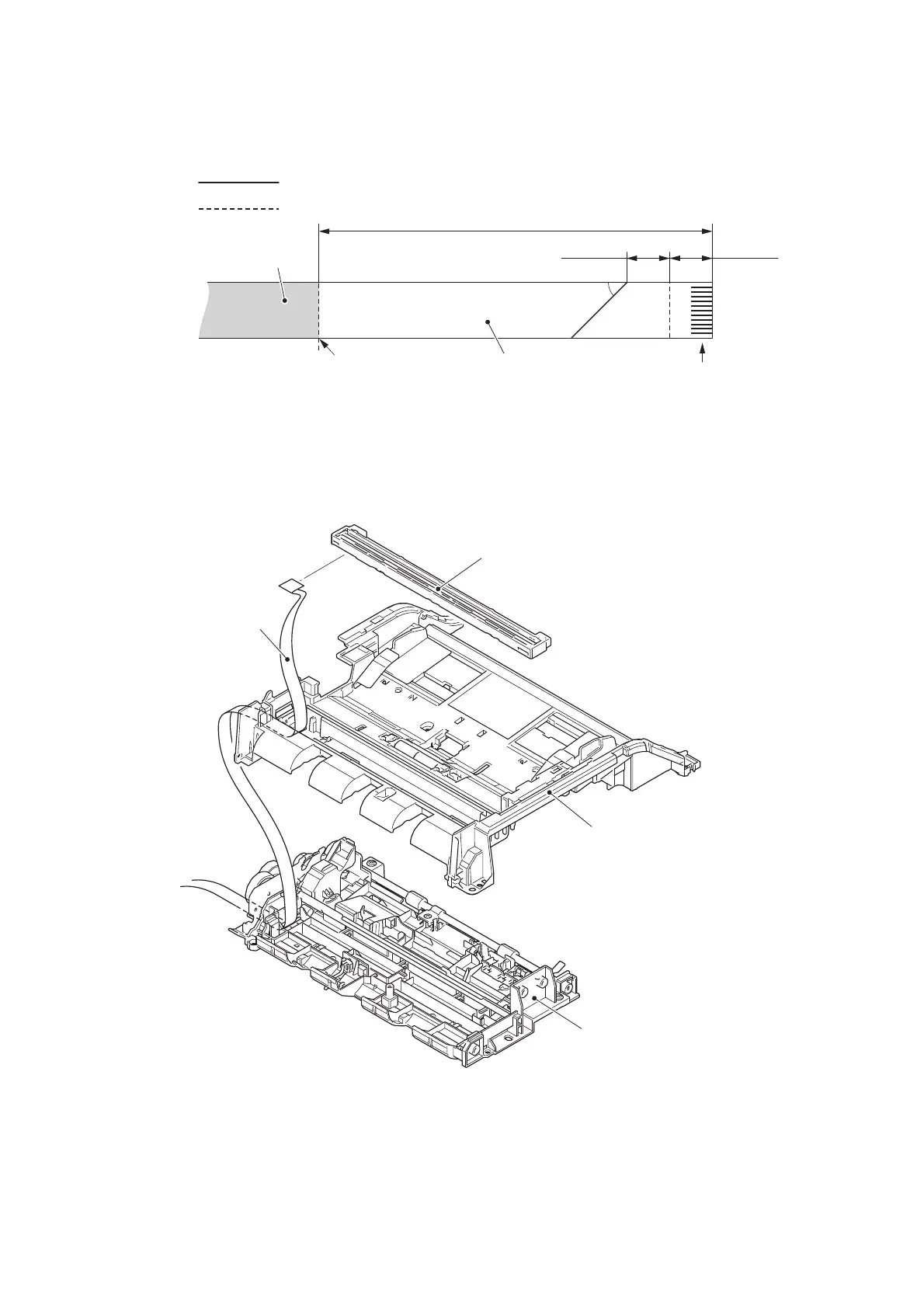

1) Fold the second side CIS flat cable as shown in the figure below.

Fig. 3-41

2) Connect the second side CIS flat cable to the second side CIS unit.

3) Pass the second side CIS flat cable through the upper document chute ASSY and the

lower document chute ASSY.

Fig. 3-42

The edge of the reinforcing tape

Second side CIS flat cable

Electrode

Mountain fold

Valley fold

CIS side

102 mm

45°

101 mm

922.5 mm

Reinforcing tape

Second side CIS unit

Second side CIS

flat cable

Upper document chute ASSY

Lower document chute ASSY
