3-52
Confidential

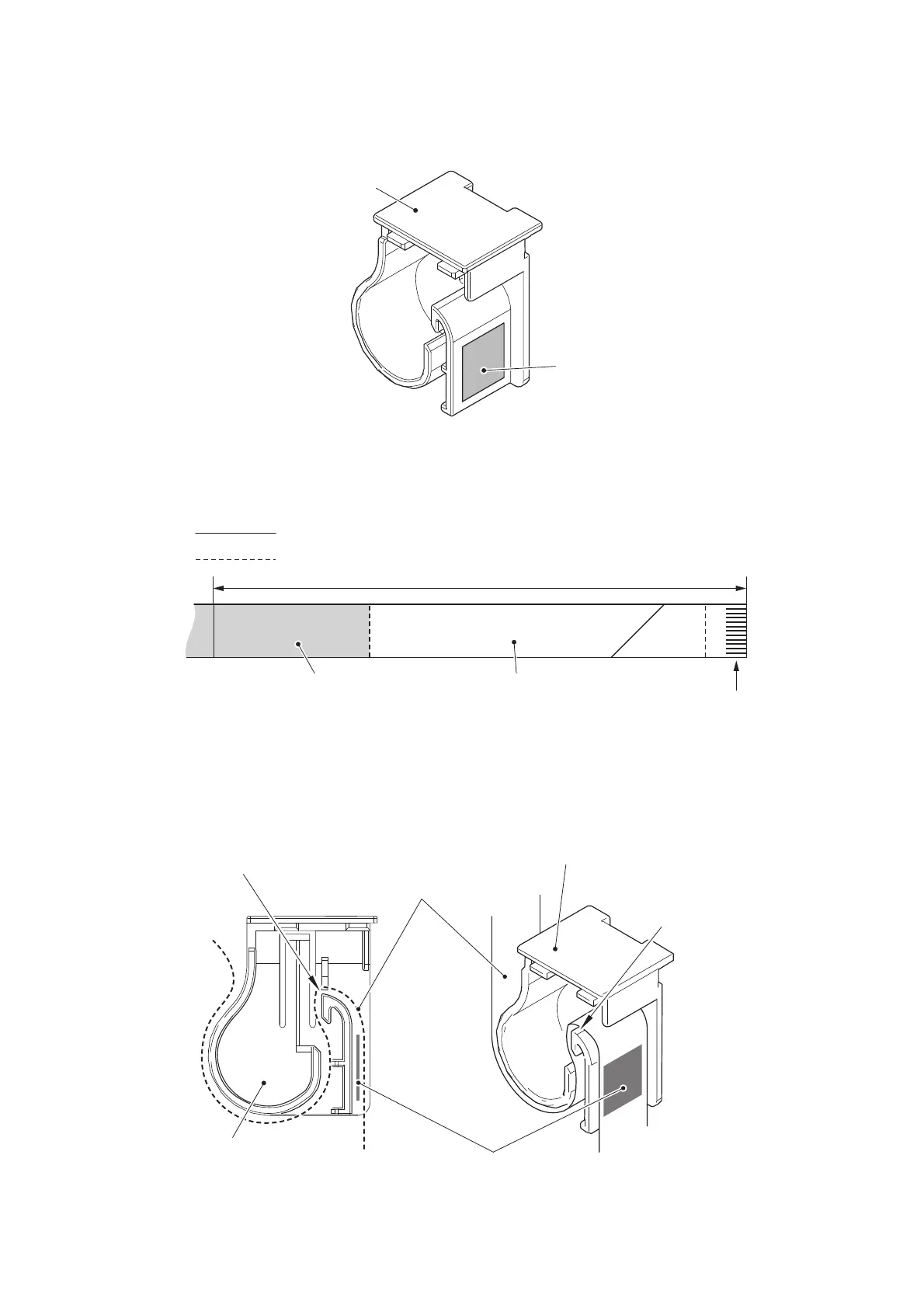

4) Attach the double-sided tape to the FFC holder ASSY as shown in the figure below.
(If the old double-sided tape remains attached, replace it with new tape.)
Fig. 3-43
5) Fold the second side CIS flat cable at 2012 mm away from the second side CIS unit
side.
Fig. 3-44
6) As shown in the illustration below, pass the second side CIS flat cable through the FFC
holder ASSY while fitting the mountain-folded section to the rib on the FFC holder ASSY.
Then secure the second side CIS flat cable with the double-sided tape attached to the
FFC holder ASSY.
Fig. 3-45
Double-sided tape
FFC holder ASSY
Reinforcing tape
Second side CIS flat cable
CIS side
Electrode
2012 mm
Mountain fold
Valley fold
FFC holder ASSY
Pass through here.
FFC holder ASSY
Rib (fit mountain-folded
section to rib)
Second side CIS flat cable
Double-sided tape
To Next Page
