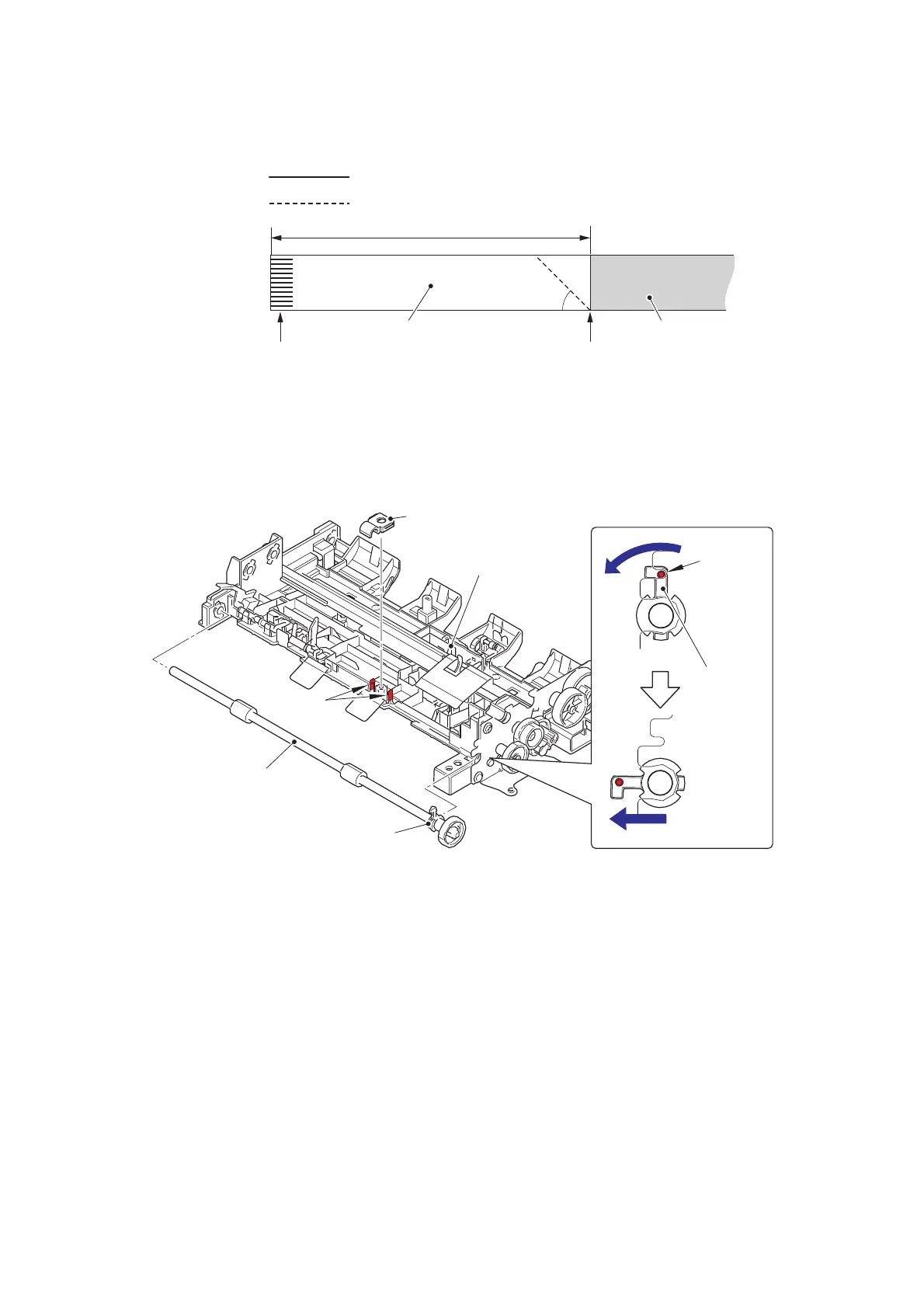

7) Fold the other end of the second side CIS flat cable at 751 mm away from the main
PCB side.
Fig. 3-46
(3) Release the hooks to remove the ejection roller bushing.
(4) Release the lock of the conductive bushing to remove the document ejection roller
ASSY from the lower document chute ASSY.
Fig. 3-47
