Brother MFC-9970CDW User Manual

Chapter 5
42

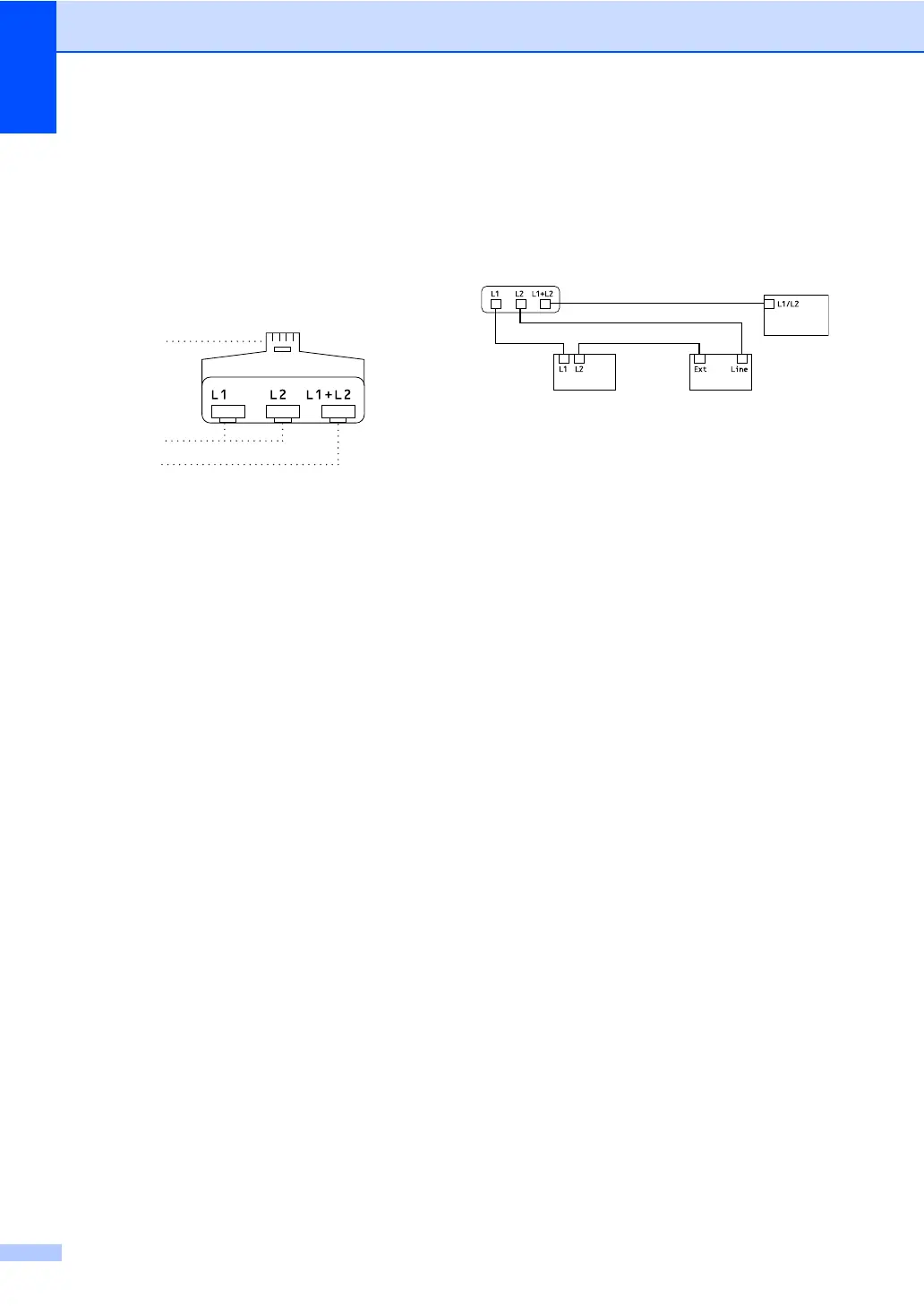

The third way is the easiest: Buy a triplex
adapter. You can plug a triplex adapter into
an RJ14 outlet. It separates the wires into two
separate RJ11 jacks (Line 1, Line 2) and a
third RJ14 jack (Lines 1 and 2). If your
machine is on Line 1, plug the machine into
L1 of the triplex adapter. If your machine is on
Line 2, plug it into L2 of the triplex adapter.
Installing machine, external two-line
TAD and two-line telephone 5
When you are installing an external two-line
telephone answering device (TAD) and a
two-line telephone, your machine must be
isolated on one line at both the wall jack and
at the TAD. The most common connection is
to put the machine on Line 2, which is
explained in the following steps. The back of
the two-line TAD must have two telephone
jacks: one labeled L1 or L1/L2, and the other
labeled L2. You will need at least three
telephone line cords, the one that came with
your machine and two for your external
two-line TAD. You will need a fourth line cord
if you add a two-line telephone.
a Put the two-line TAD and the two-line
telephone next to your machine.
b Plug one end of the telephone line cord
for your machine into the L2 jack of the
triplex adapter. Plug the other end into
the LINE jack on the back of the
machine.
c Plug one end of the first telephone line
cord for your TAD into the L1 jack of the
triplex adapter. Plug the other end into
the L1 or L1/L2 jack of the two-line TAD.
d Plug one end of the second telephone
line cord for your TAD into the L2 jack of
the two-line TAD. Plug the other end into
the EXT. jack on the left side of the
machine.
1 Triplex Adapter
2 Two Line Telephone
3 External Two Line TAD
4 Machine
You can keep two-line telephones on other
wall outlets as always. There are two ways to
add a two-line telephone to the machine’s
wall outlet. You can plug the telephone line
cord from the two-line telephone into the
L1+L2 jack of the triplex adapter. Or, you can
plug the two-line telephone into the TEL jack
of the two-line TAD.
RJ14
RJ11
RJ14
1
2
34

Brother MFC-9970CDW Specifications

General

Weight (imperial)	62.8 lbs
Dimensions (WxDxH)	490 x 526 x 531 mm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows, Mac OS
Dimensions (W x D x H) (imperial)	19.3 x 20.7 x 20.9 \
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	30 ppm
Digital sender	No
Printing colors	Black, Blue, Red, Yellow
Maximum duty cycle	60000 pages per month
Optional functions	Fax
Number of print cartridges	4
Page description languages	BR-Script 3, PCL 6
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	30 cpm
Scan to	E-mail, E-mail Server, File, FTP, Image, OCR, USB
Input color depth	48 bit
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Display diagonal	5 \
Market positioning	Business
Direct printing	-
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Authentication method	WEP 64/128-b, WPA-PSK (TKIP/AES), WPA2-PSK (AES), 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA, WINS/NetBIOS, DNS, mDNS, LLMNR, LPR/LPD, IPP/IPPS, FTP, CIFS, TELNET, SNMPv1/v2c/v3, HTTP/HTTPS, TFTP, SMTP, ICMP, LLTD, SNTP, APOP, POP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), 802.1x
Supported network protocols (IPv6)	NDP, RA, DNS, mDNS, LLMNR, LPR/LPD, IPP/IPPS, FTP, CIFS, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS, TFTP, SMTP, ICMPv6, SNTP, LLTD, APOP, POP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), 802.1x
Maximum internal memory	512 MB
Sound pressure level (copying)	57 dB
AC input voltage	110 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.8 W
Power consumption (average operating)	615 W
Package weight	34019 g
Operating temperature (T-T)	50 - 90.5 °F
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR
