3-16

Confidential

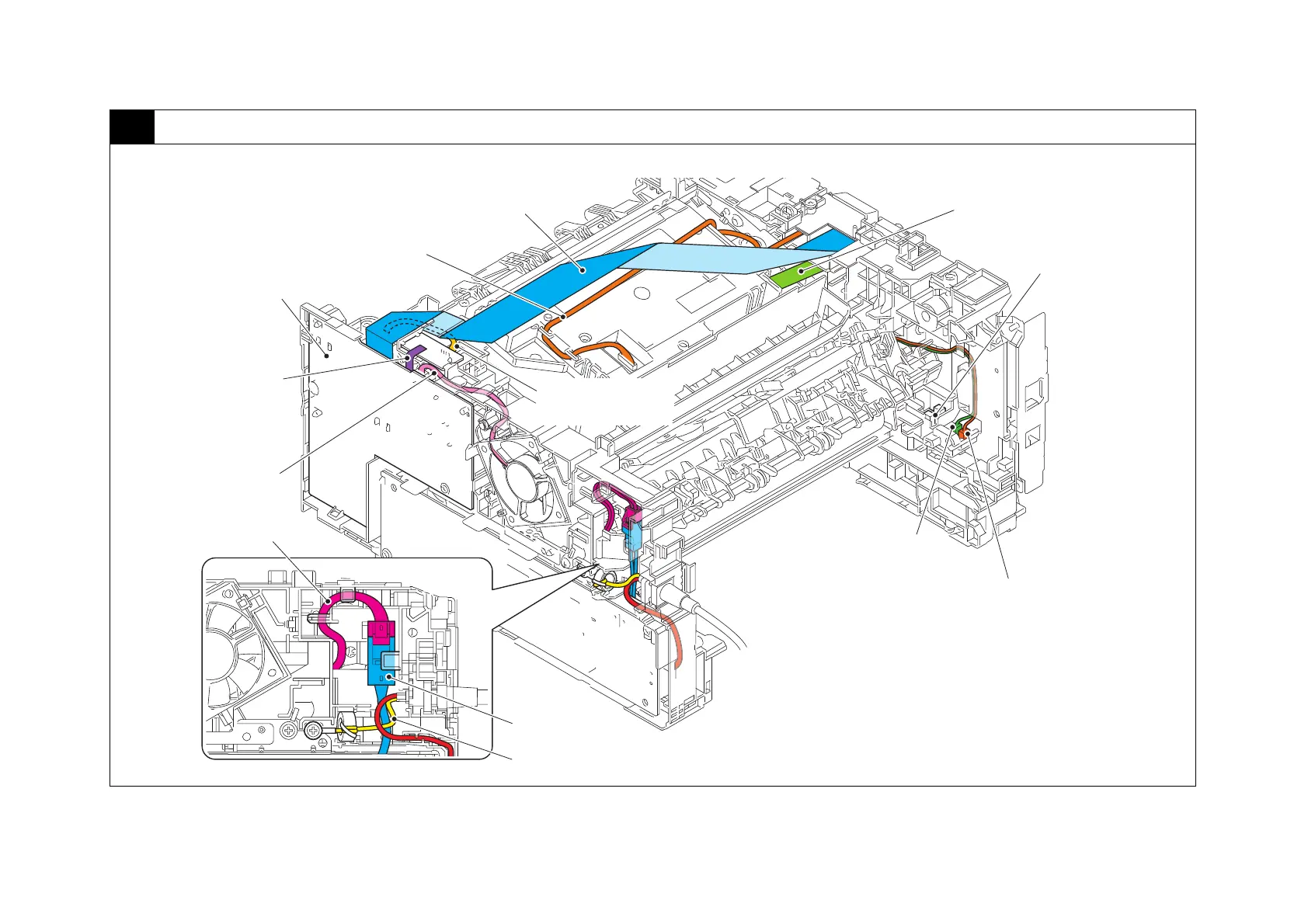

8 Rear side of the machine

Harness colors are subject to change for some reason.

Side thermistor

harness ASSY

(WH)

Center thermistor

harness ASSY

(WH)

LVPS-heater harness

(BK, WH)

Fuser unit heater harness (WH)

Fan harness (RD, BK, WH)

New toner sensor flat cable

HVPS flat cable

Polygon motor harness (WH)

High-voltage power supply PCB ASSY

Eject sensor PCB ASSY

Laser unit flat cable

Ground harness (GR/YW)

Registration front/rear

sensor harness

(GR, WH, BL, RD)
