9.30 Frame L unit
Manual feed models
(1) Remove the two Taptite bind B M4x12 screws and the Screw pan (S/P washer) M3x12DB
screw, and remove the Front chute ASSY.
(2) Release the LVPS harness, the Cartridge sensor harness (only for models without Toner
box) and the Paper feed sensor harness from the securing fixtures.
(3) Remove the Regist FG spring from the Motor drive sub ASSY and the Conductive bushing 5.
(4) Use a flat-blade screwdriver or similar tool to release the Hook from the Hole, and remove
the Conductive bushing 5.
(5) Release the Hook, and remove the Feeder gear 34.

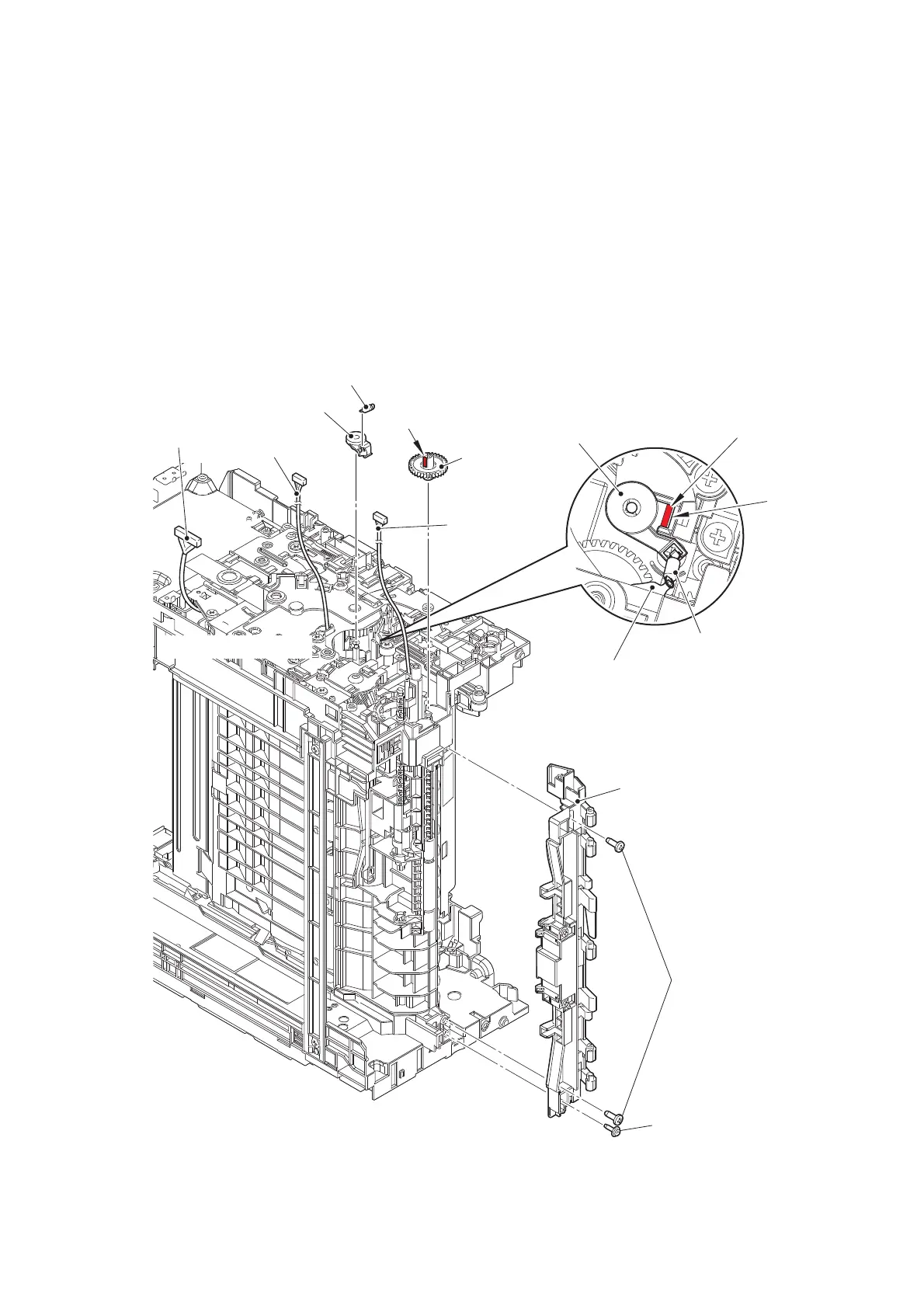

Fig. 3-89
Harness routing: Refer to “10. Frame L unit (Manual feed models)”.
Taptite bind B M4x12
Front chute ASSY
Hook
Regist FG spring
Conductive bushing 5
Conductive bushing 5
Feeder gear 34
<Front side>
Hook
Screw pan (S/P washer)
M3x12DB
Motor drive sub ASSY
Regist FG spring
LVPS
harness
Paper feed
sensor harness
<Upper side of Frame L>
Hole
Cartridge sensor harness
(Only for models without
Toner box)
