3-71

Confidential

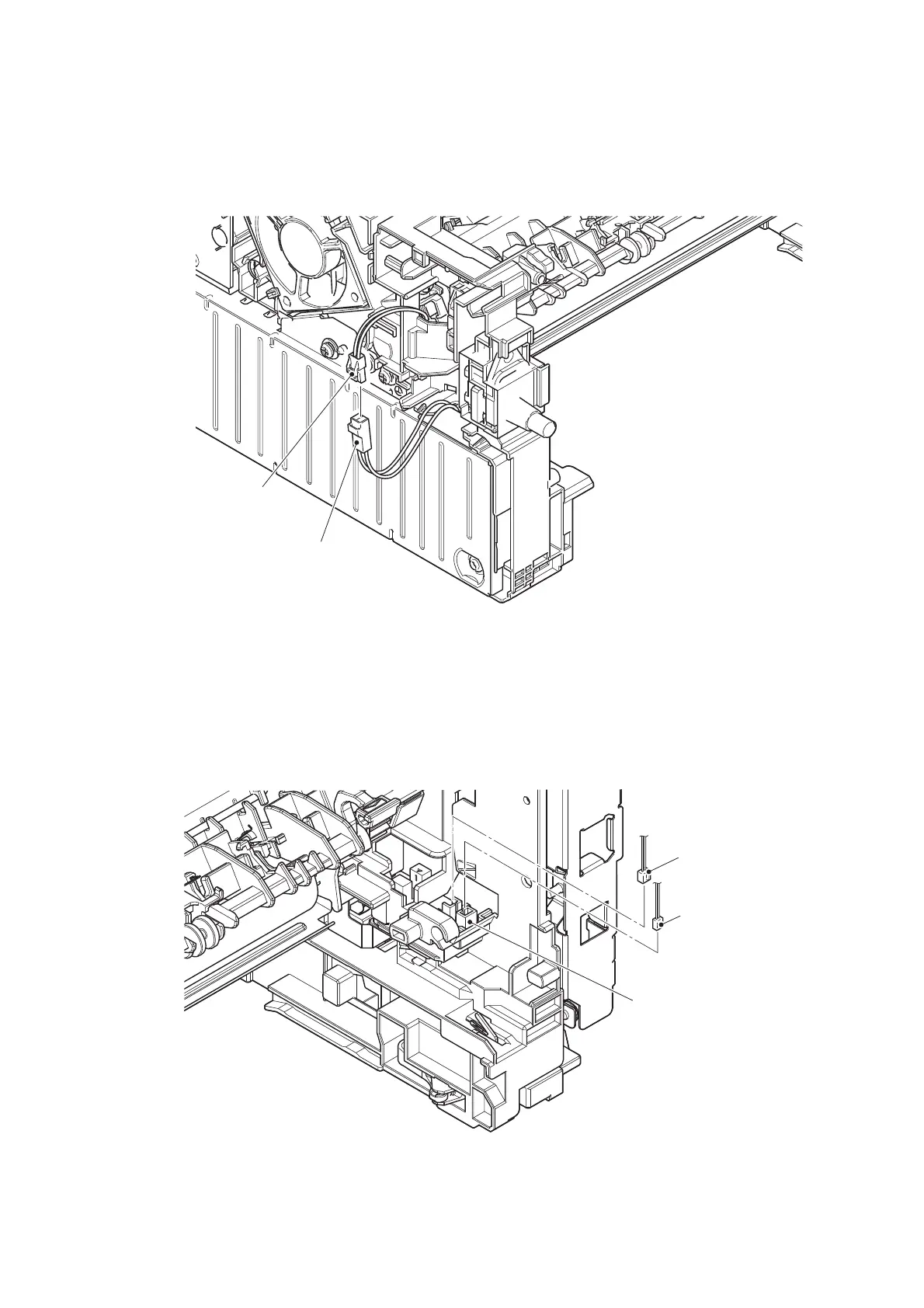

9.18 Fuser unit

(1) Release the Fuser unit heater harness from the securing fixtures, and disconnect it from

the LVPS-heater harness.

Fig. 3-64

Harness routing: Refer to “8. Rear side of the machine”.

(2) Disconnect the Center thermistor harness ASSY and the Side thermistor harness ASSY

from the Eject sensor PCB ASSY.

(3) Release the Center thermistor harness ASSY and the Side thermistor harness ASSY from

the securing fixtures.

Fig. 3-65

Harness routing: Refer to “8. Rear side of the machine”.

LVPS-heater harness

Fuser unit heater harness

Side thermistor

harness ASSY

Center thermistor

harness ASSY

Eject sensor PCB ASSY
