3-48

Confidential

9.11.6 Second side CIS unit / Second side CIS flat cable

(Only for models with duplex scanning)

(1) Remove the six Taptite cup B M3x10 screws to remove the Upper document chute from the

ADF unit.

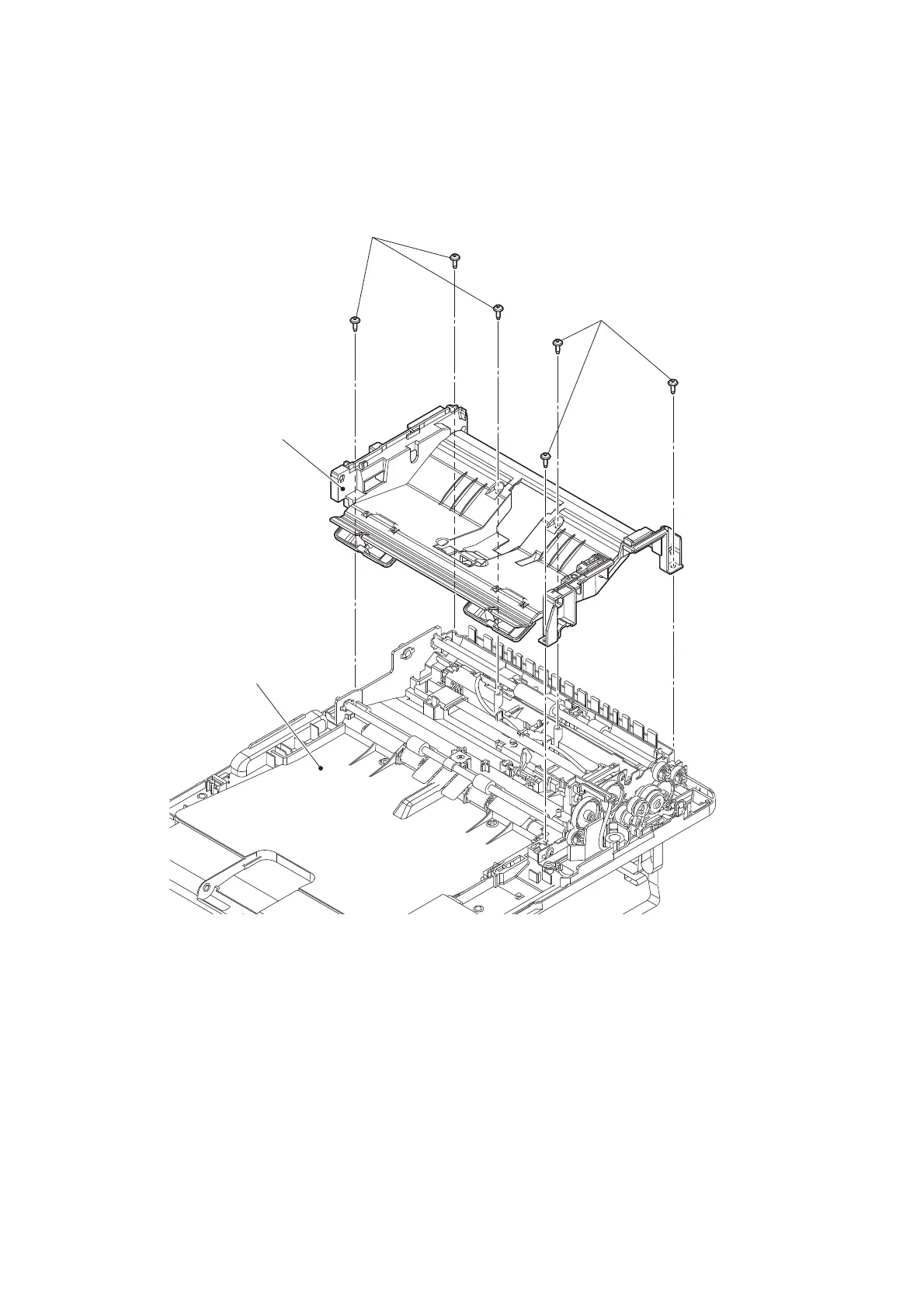

Fig. 3-39

Upper document chute

ADF unit

Taptite cup B M3x10

Default Chapter4
