9.11.4 Document separate roller ASSY

(1) Release the Lock of the Conductive bushing to remove the Document separate roller

ASSY from the ADF unit.

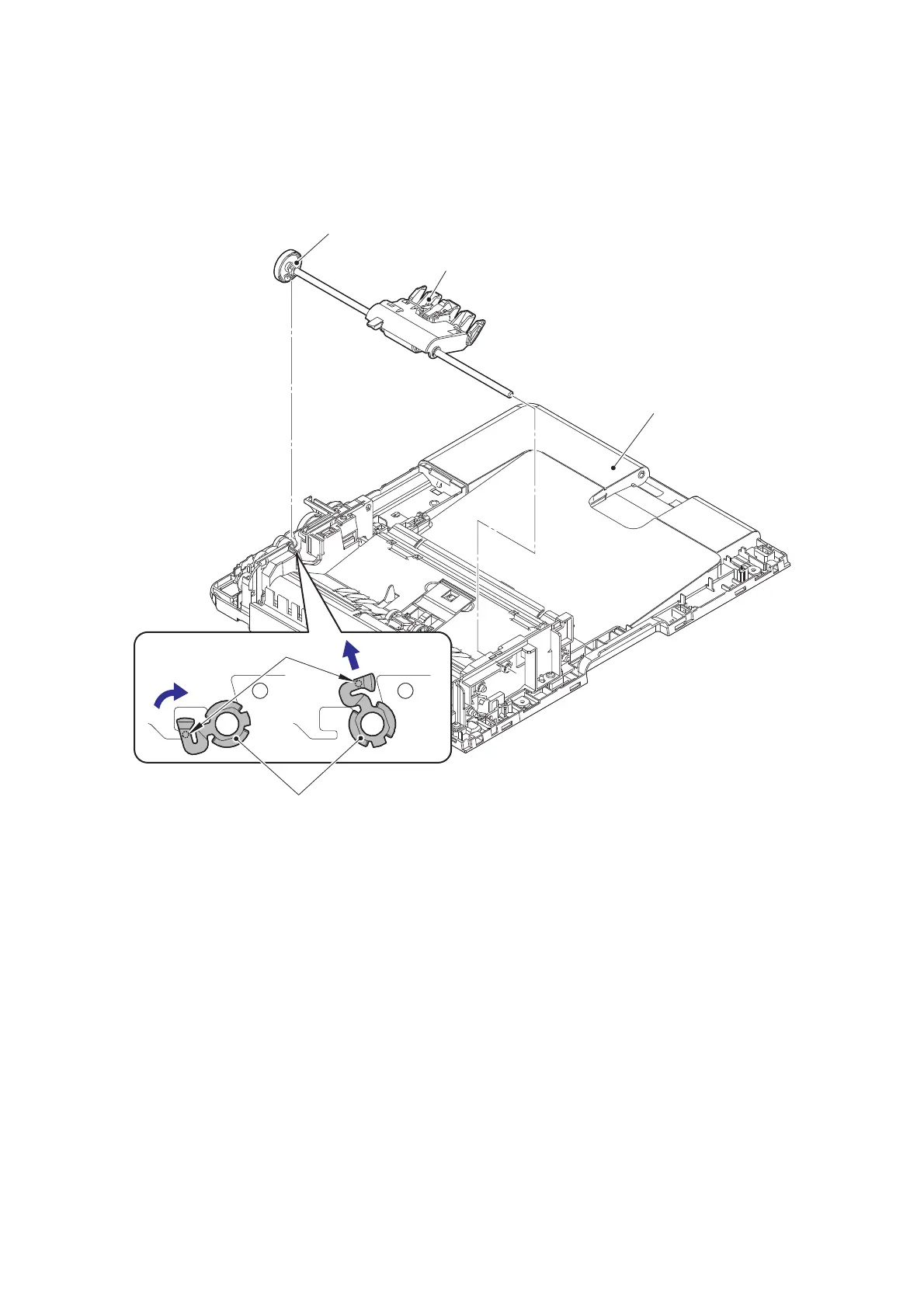

Fig. 3-37

Document separate roller ASSY

ADF unit

Conductive bushing

Lock

Conductive bushing
