3-75

Confidential

9.20 New toner sensor PCB ASSY

(1) Disconnect the New toner sensor flat cable from the High-voltage power supply PCB

ASSY, and release the Hook to remove the New toner sensor PCB ASSY. Disconnect the

Registration front/rear sensor harness from the New toner sensor PCB ASSY.

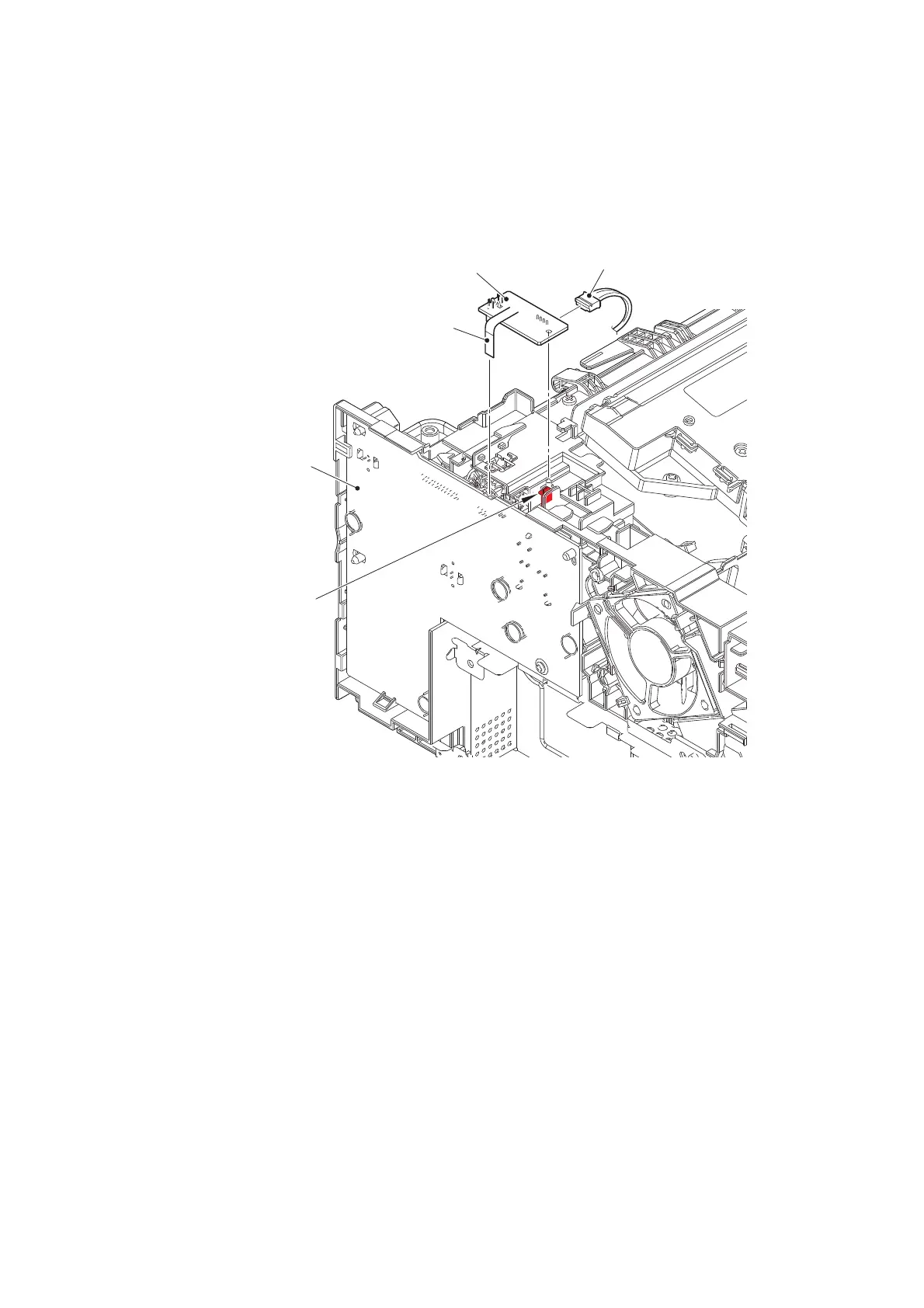

Fig. 3-70

Harness routing: Refer to “8. Rear side of the machine”.

New toner sensor flat cable

Hook

Registration front/rear sensor harness

New toner sensor PCB ASSY

High-voltage power

supply PCB ASSY
