3-78

Confidential

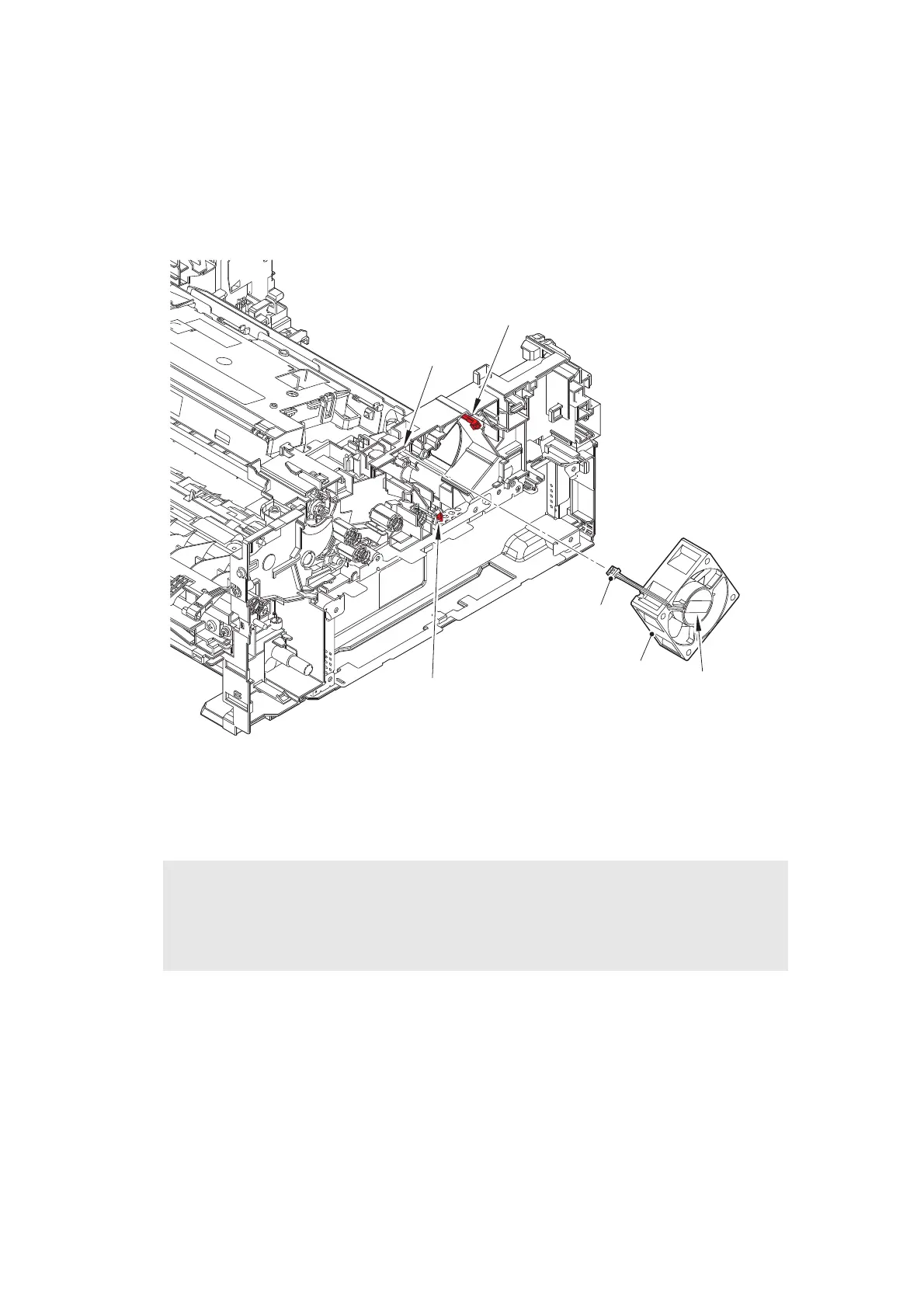

9.22 Fan

(1) Release the Fan harness from the securing fixtures.

(2) Release each Hook to remove the Fan, and pull out the Fan harness from the Hole.

Fig. 3-73

Harness routing: Refer to “8. Rear side of the machine”.

Assembling Note:

• When assembling the Fan, insert the Fan harness into the hole to make sure that the

Fan harness is not caught.

• Attach the Fan so that the surface with the Label faces out.

Fan harness

Label

Hook

Fan

Hole

Hook
