3-77

Confidential

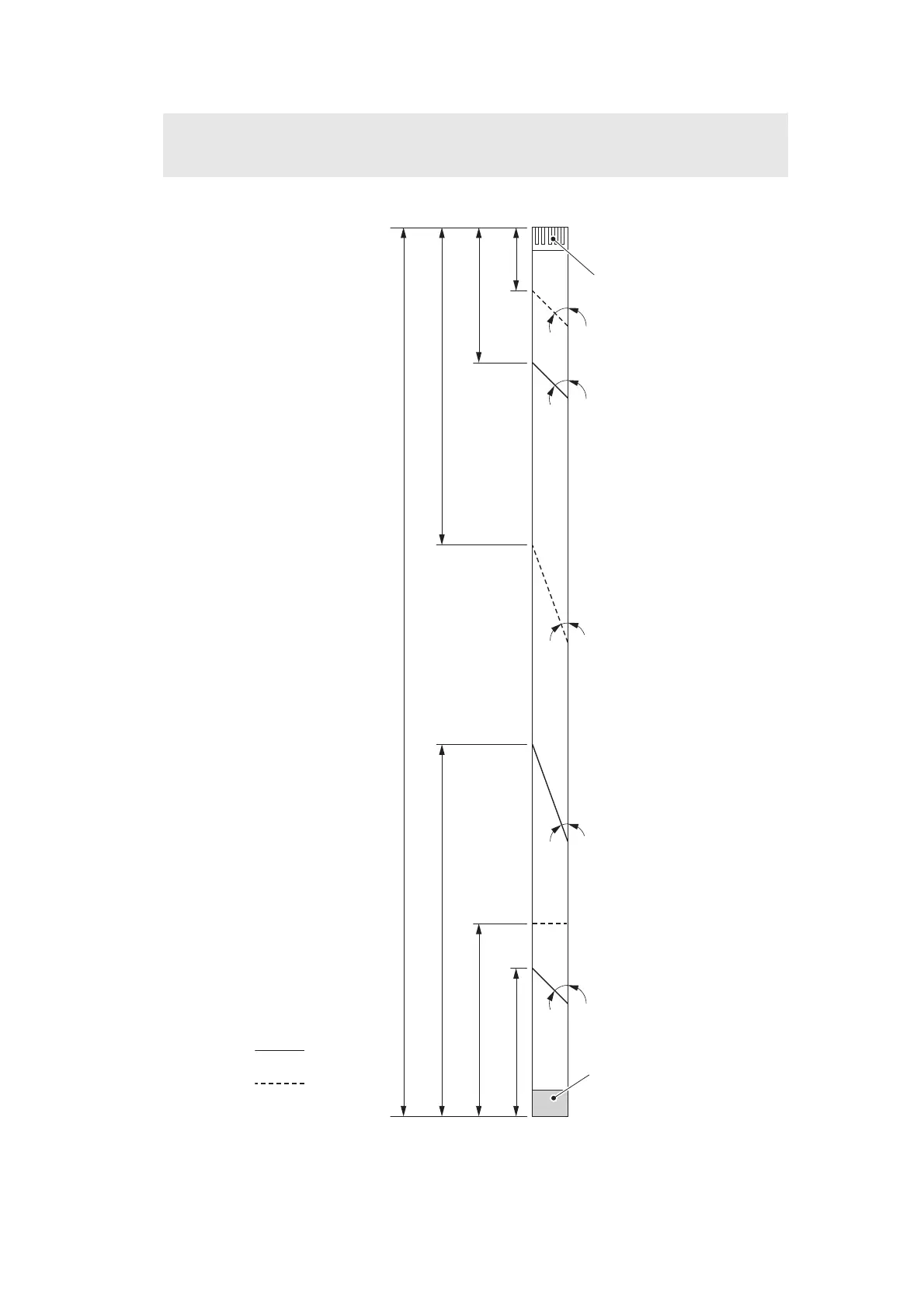

Fig. 3-72

Assembling Note:

• Fold the HVPS flat cable at the positions described below.

Electrode

20°

Mountain fold

Valley fold

Reinforcing tape

45°

20°

45°

<Main PCB side>

<High-voltage power supply PCB side>

45°

38±1

81±1

191±1

536±10

224±1

89±1

116±1
