3-27

Confidential

9.4 Outer chute ASSY

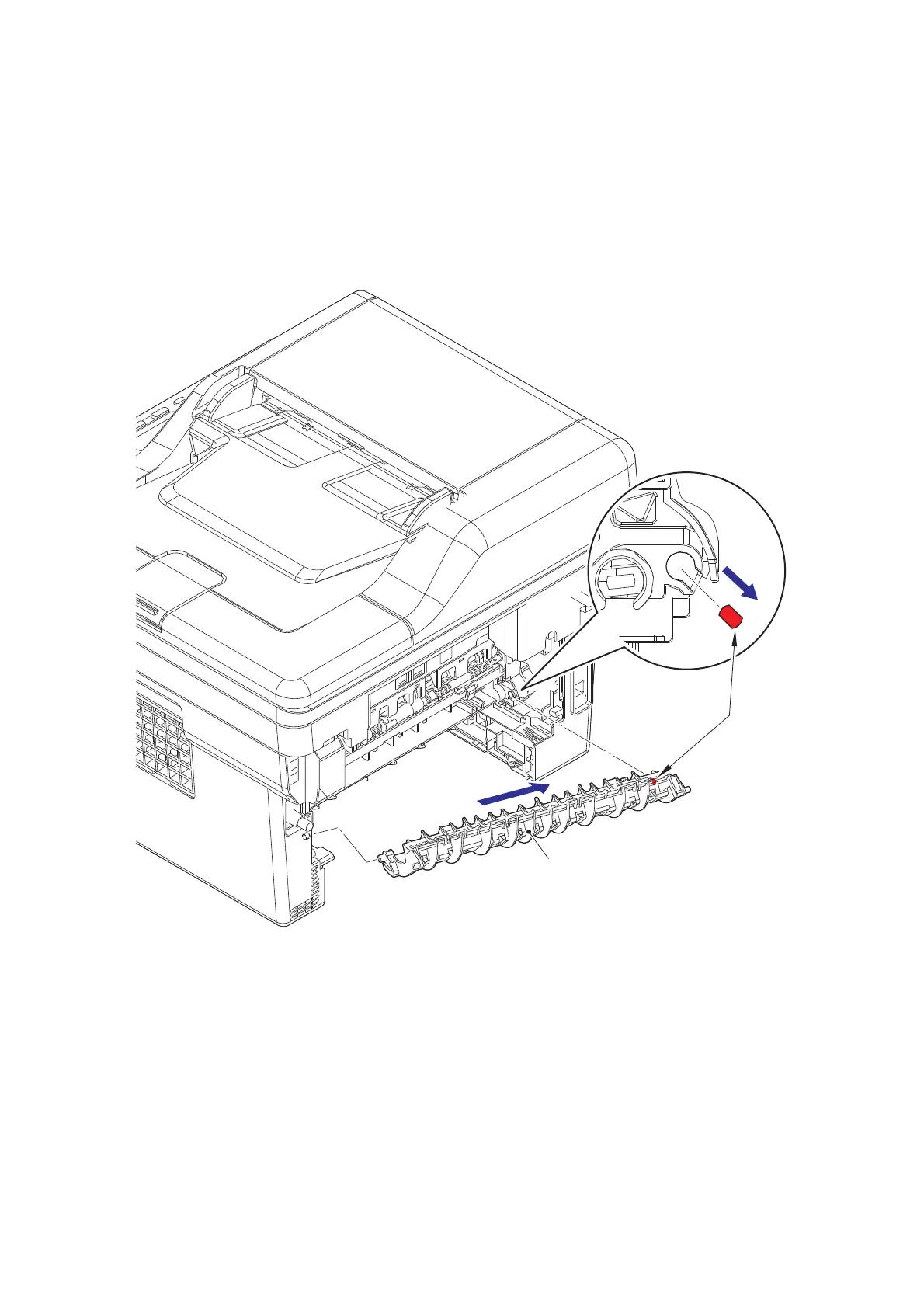

(1) Pull out the right side of the Outer chute ASSY in the direction of the arrow A to remove the

Boss of the Outer chute ASSY, and remove the Outer chute ASSY in the direction of the

arrow B.

Fig. 3-12

Boss

Outer chute ASSY
