3-26

Confidential

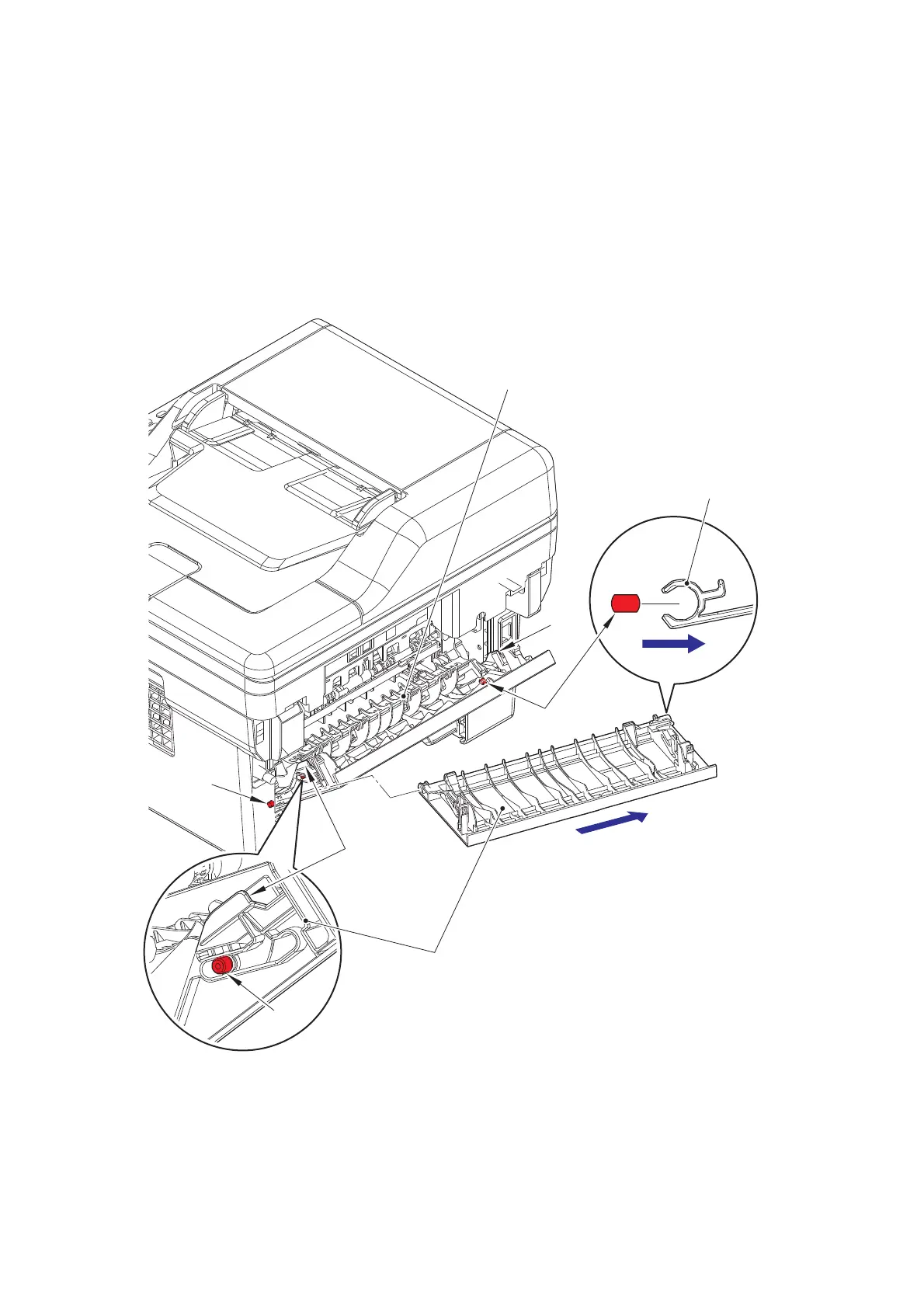

9.3 Back cover

(1) Open the Back cover.

(2) Push both Ribs on the Back cover outward, and remove the Pin on the Outer chute ASSY.

(3) Pull out the right side of the Back cover in the direction of the arrow A to remove it from the

Boss, and remove the Back cover in the direction of the arrow B.

Fig. 3-11

Boss

Back cover

Rib

Outer chute ASSY

Rib

Boss
