3-37

Confidential

9.10 Document scanner unit

(1) Open the Document scanner unit.

(2) Release the Joint parts of Pull arm L and Pull arm R from each Pull arm hinge. Remove the

Pull arm L and the Pull arm R from each Pull arm guide.

(3) Remove each Pull arm spring from the Pull arm L and the Pull arm R.

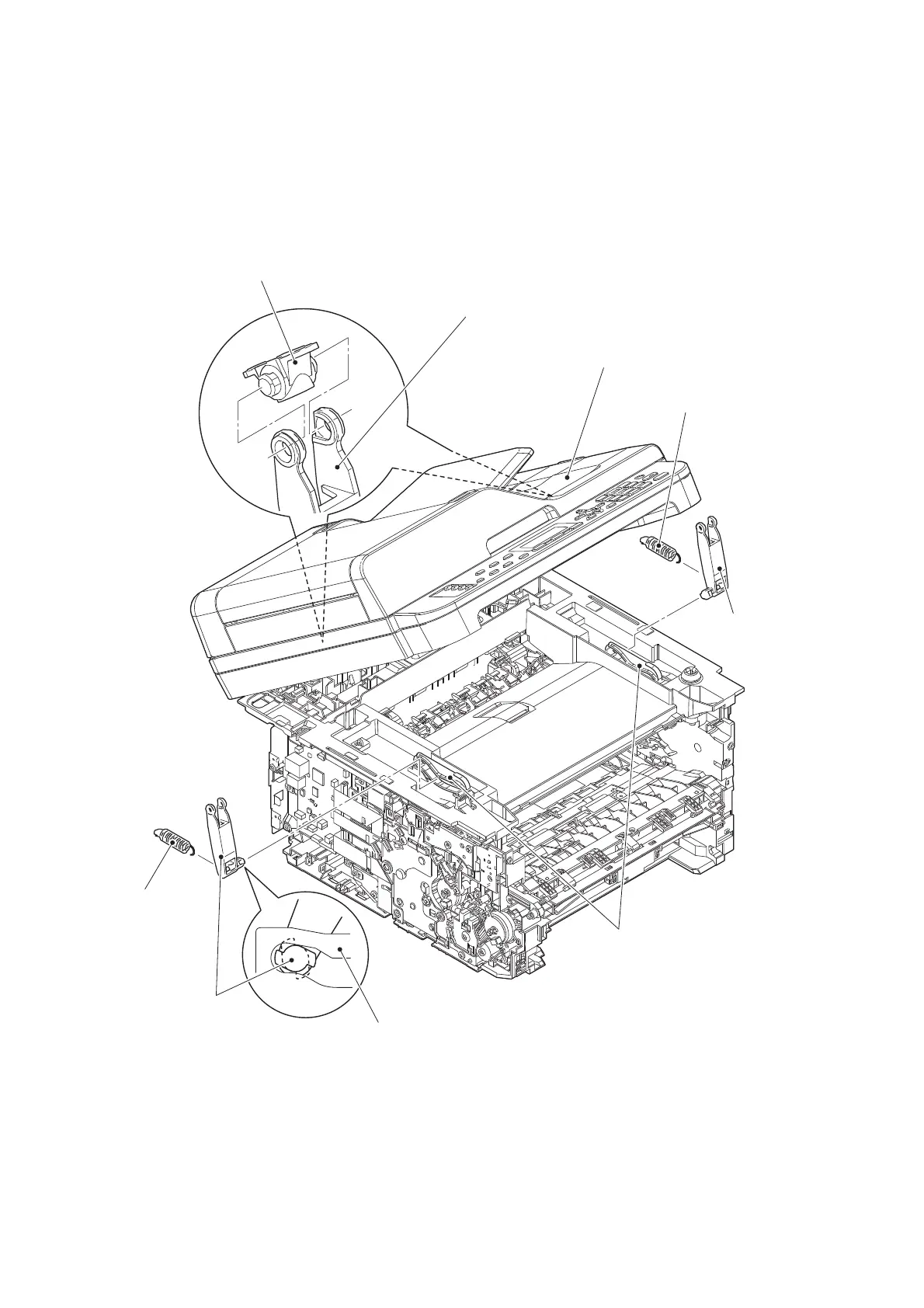

Fig. 3-25

Joint part of Pull arm

Pull arm hinge

Document scanner unit

Pull arm spring

Pull arm R

Pull arm guide

Pull arm L

Pull arm spring

Pull arm guides
