3-36
Confidential
<For models with Handset>

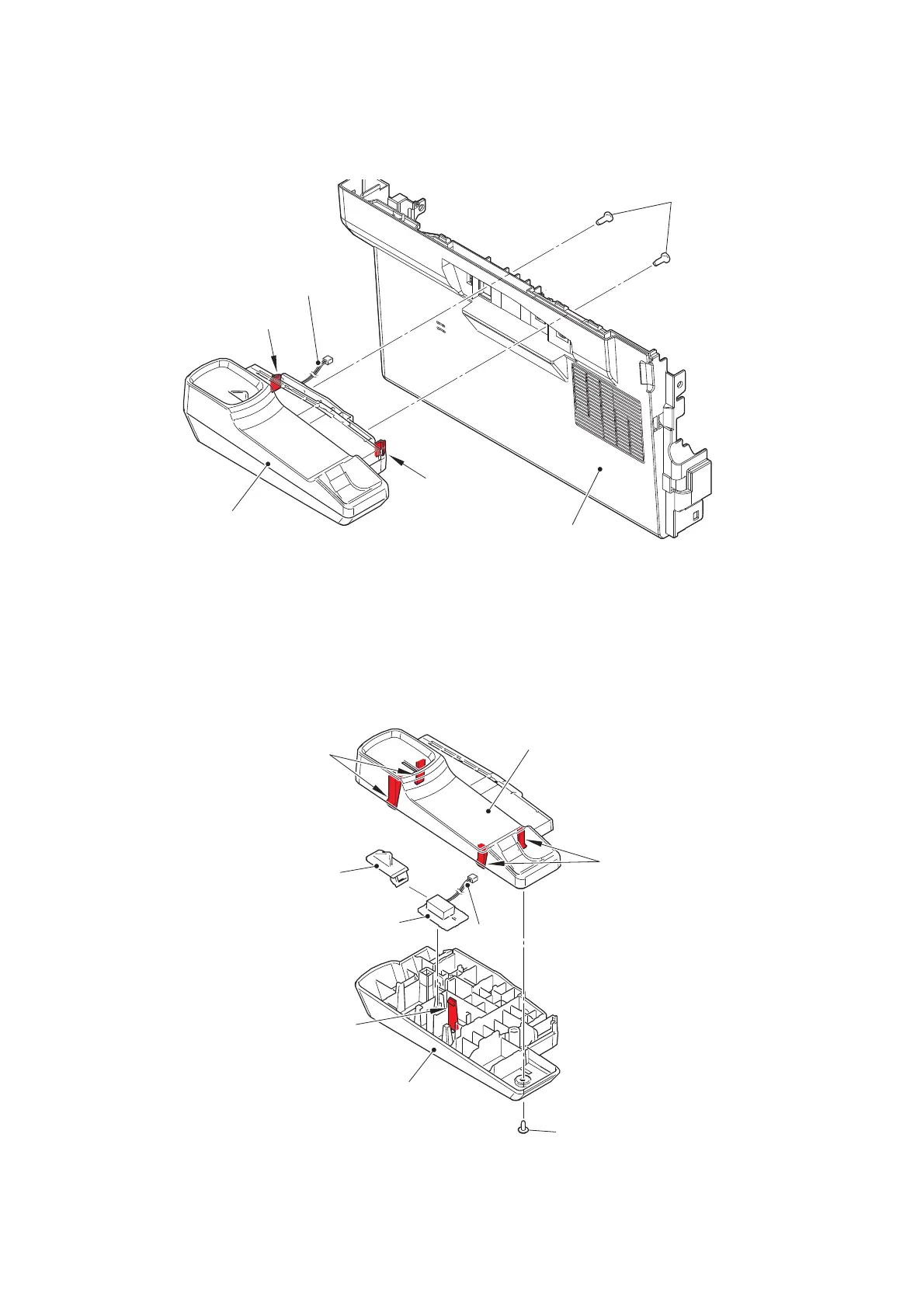

(7) Remove the two Taptite bind B M4x12 screws. Release each Hook to remove the Handset
holder ASSY from the Side cover L. Release the Hook harness from the securing fixtures.
Fig. 3-23
Harness routing: Refer to “1. Handset holder ASSY, Speaker harness ASSY”.
(8) Remove the Taptite cup B M3x8 screw. Release each Hook A to remove the Upper
handset holder from the Lower handset holder.
(9) Release the Hook harness from the securing fixtures. Release the Hook B to remove the
Hook switch PCB ASSY from the Lower handset holder.
(10) Remove the Actuator hook from the Hook switch PCB ASSY.
Fig. 3-24
Harness routing: Refer to “1. Handset holder ASSY, Speaker harness ASSY”.
Taptite bind B M4x12
Handset holder ASSY
Hook
Hook
Side cover L
Hook harness
Upper handset holder
Hooks A
Hooks A
Actuator hook
Hook switch PCB ASSY
Hook B
Lower handset holder
Taptite cup B M3x8
Hook
harness
To Next Page
