3-35

Confidential

(5) Release the Speaker harness ASSY from the securing fixtures.

(6) Remove the Speaker spring to remove the Speaker harness ASSY from the Side cover L.

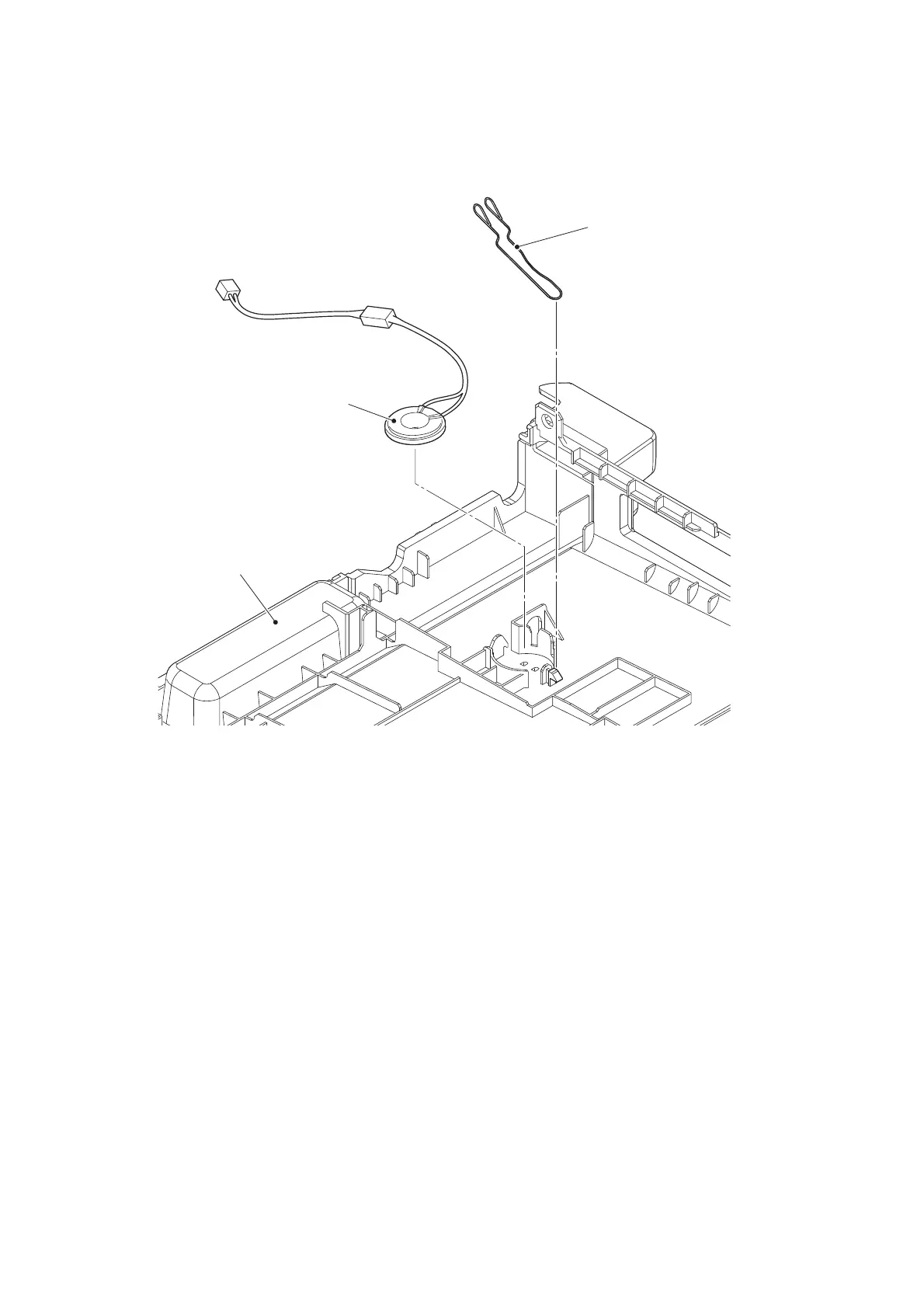

Fig. 3-22

Harness routing: Refer to “1. Handset holder ASSY, Speaker harness ASSY”.

Speaker spring

Speaker harness ASSY

Side cover L

Default Chapter4
