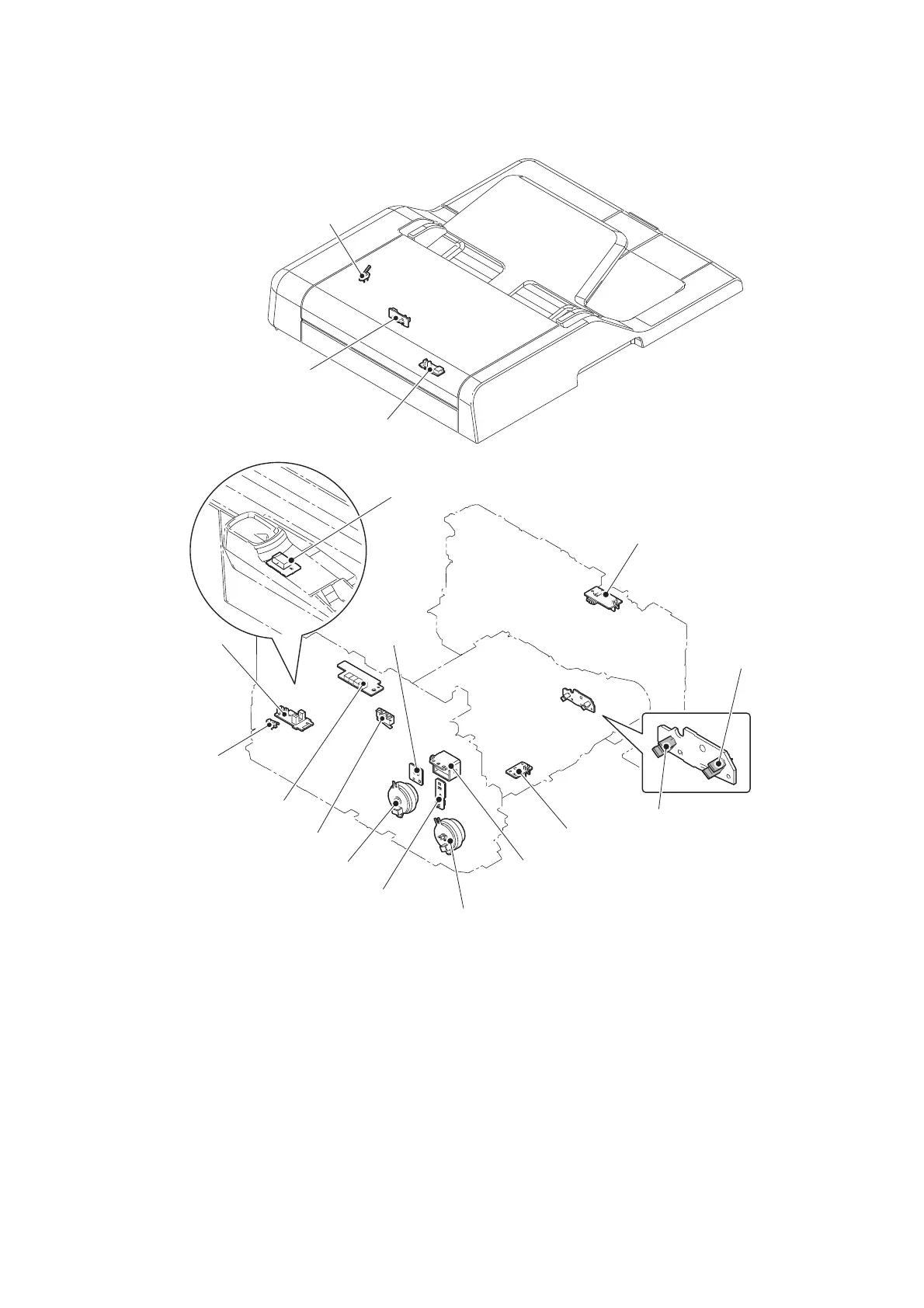

 Location of sensors

Fig. 5-10

ADF cover sensor

Document scanning position sensor

Document detection sensor

T1 clutch

New toner sensor PCB ASSY

Toner box relay PCB ASSY

MP relay PCB ASSY

Registration clutch

Registration rear sensor

Registration

front sensor

Paper feed sensor PCB ASSY

Toner box solenoid

Eject sensor

PCB ASSY

Back cover/duplex

tray sensor

Front cover sensor

Toner box new PCB ASSY

Toner sensor

PCB ASSY

Hook switch

: For models with Toner box

: For models without Toner box
