Brother MFC-L8650CDW

To Next Page

To Previous Page

3-14

Confidential

Harness colors may be changed for any reason.

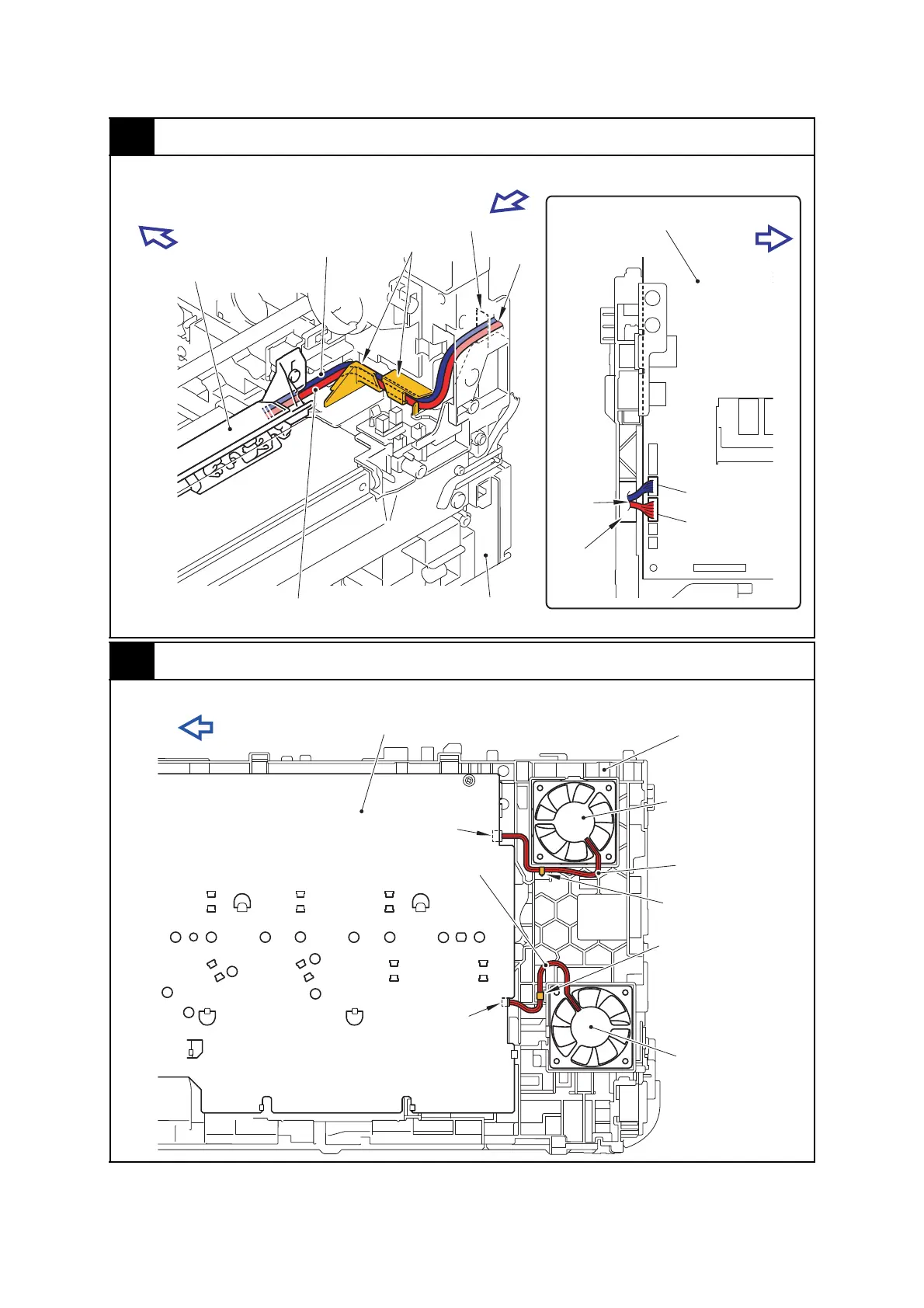

7 Registration Mark Sensor Unit

8 Fuser Fan, Power Fan

Front

A view

“A”

CN43

CN44

“A”

Main PCB ASSY

Hook

Hole

Main frame L ASSY

Registration mark sensor unit

Registration mark sensor L PCB harness

Registration mark sensor

R PCB harness

(RD, WH, BL)

(GY)

Front

Hook

CN5

CN4

High-voltage power supply PCB ASSY

Main frame R ASSY

Fuser fan

Power fan

Hook

Fuser fan harness

(RD, WH, BK)

Power fan harness

(RD, BK)
