Brother MFC-L8650CDW

To Next Page

To Previous Page

3-91

Confidential

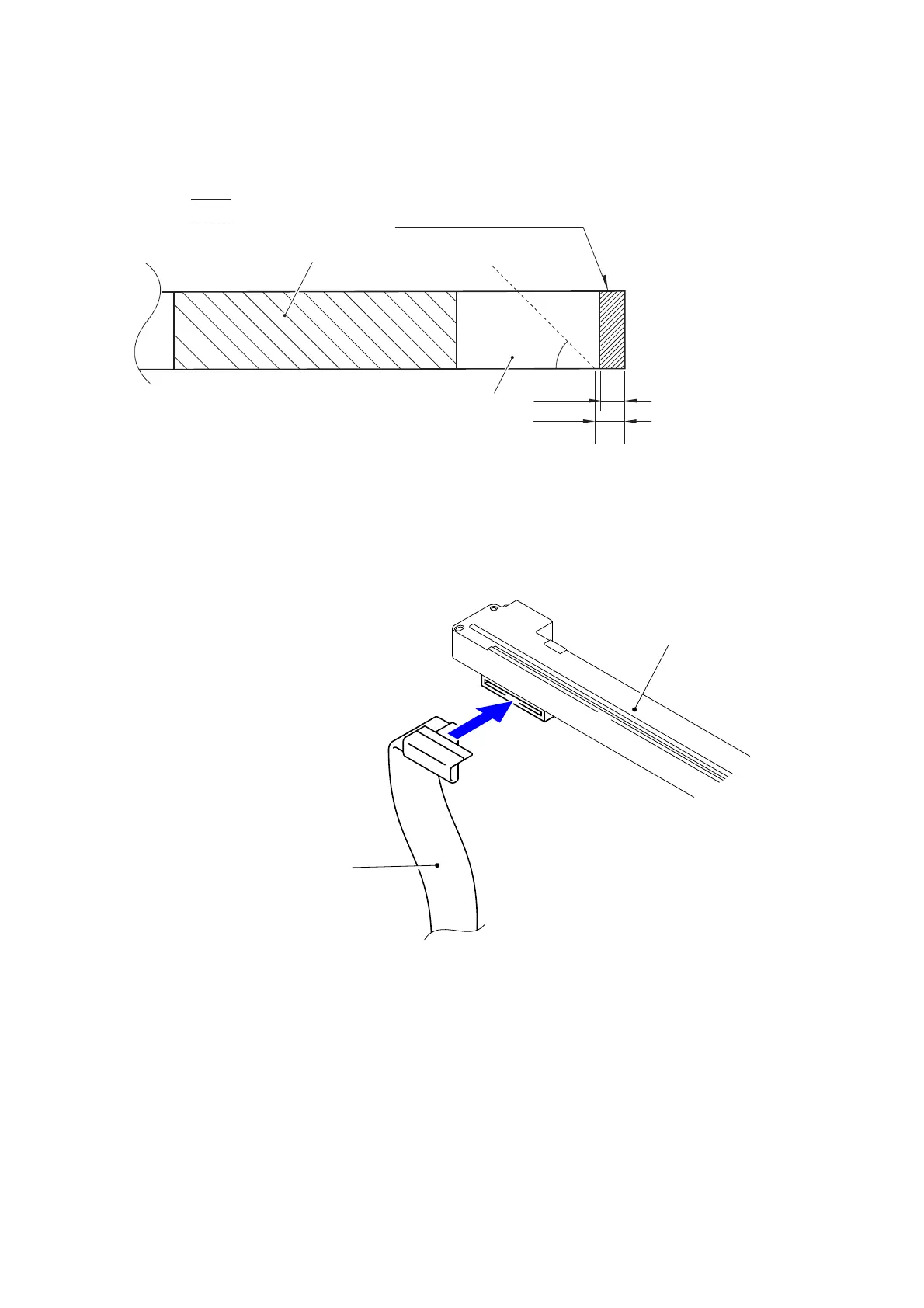

(2) Fold the Second side CIS flat cable at the Second side CIS unit side as shown in the

how-to-fold figure below.

Fig. 3-104

(3) Mount the Second side CIS flat cable at the Second side CIS unit side to the Second side

CIS unit.

Fig. 3-105

Fold down

Fold back

9±1 mm

45°

(8 mm)

Supporting tape

Second side CIS flat cable

Fold the flat cable at the edge

Surface of the Supporting plate

(Back side: Terminal surface)

of the Supporting plate.

<To be connected to

Second side CIS unit>

Second side CIS flat cable

Second side CIS unit
