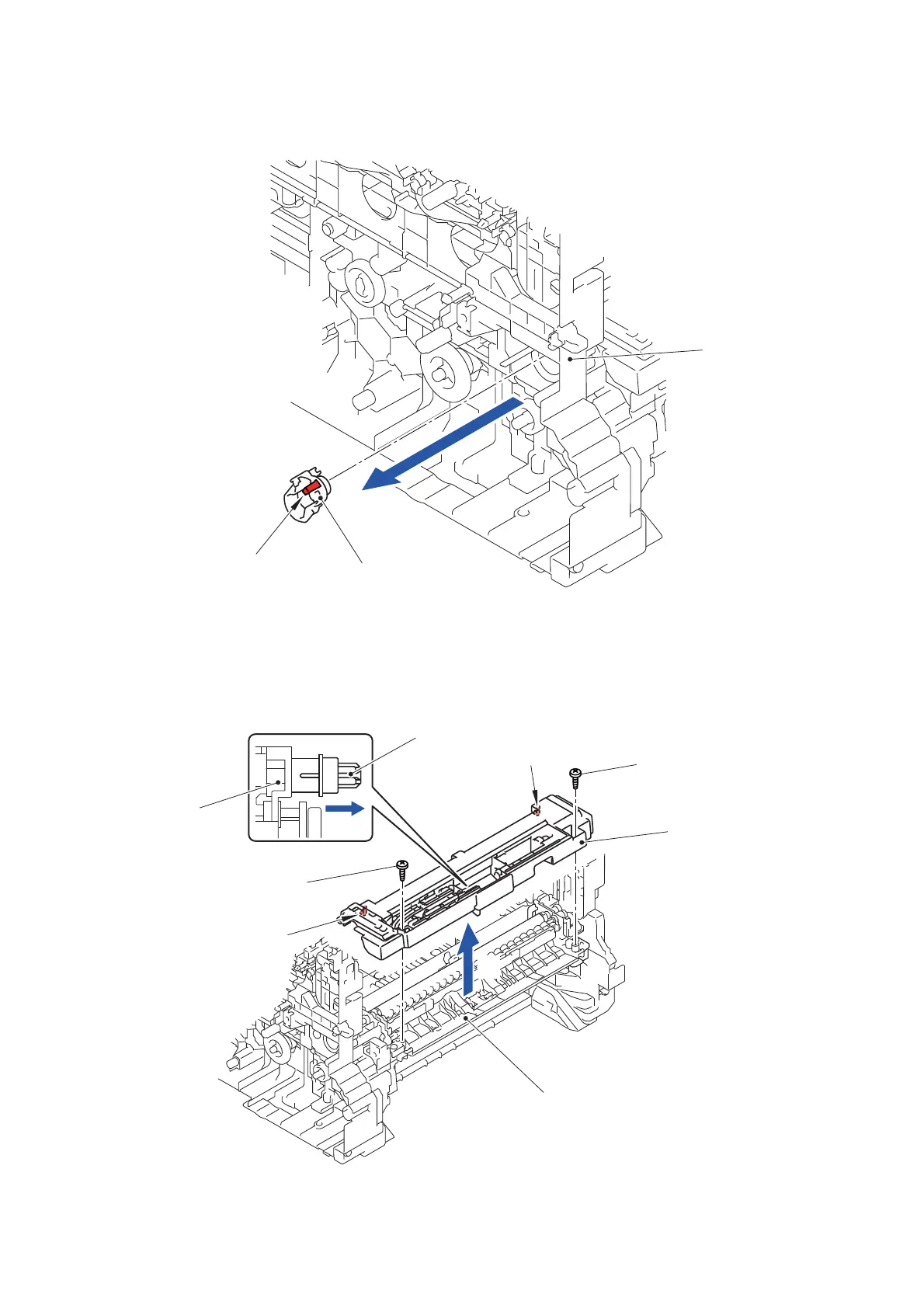

(8) Release the Hook and remove the Registration/pinch roller gear bushing from the Main body.
(9) Release the wiring of the Registration/pinch roller gear bushing.
Fig. 3-240
(10) Slide the MP drive shaft as shown in the figure.
(11) Remove the two Taptite bind B M3x10 screws from the MP upper cover ASSY.
Release the two Hooks and remove the MP upper cover ASSY from the MP lower chute
ASSY.
Fig. 3-241
Registration/pinch roller gear bushing
Hook
Main body
<Left side>
MP drive shaft
Taptite bind B M3x10
Hook
MP lower chute ASSY
Taptite bind B M3x10
11
10
Hook
<Front side>
MP upper cover ASSY
MP upper
cover ASSY
