3-201
Confidential

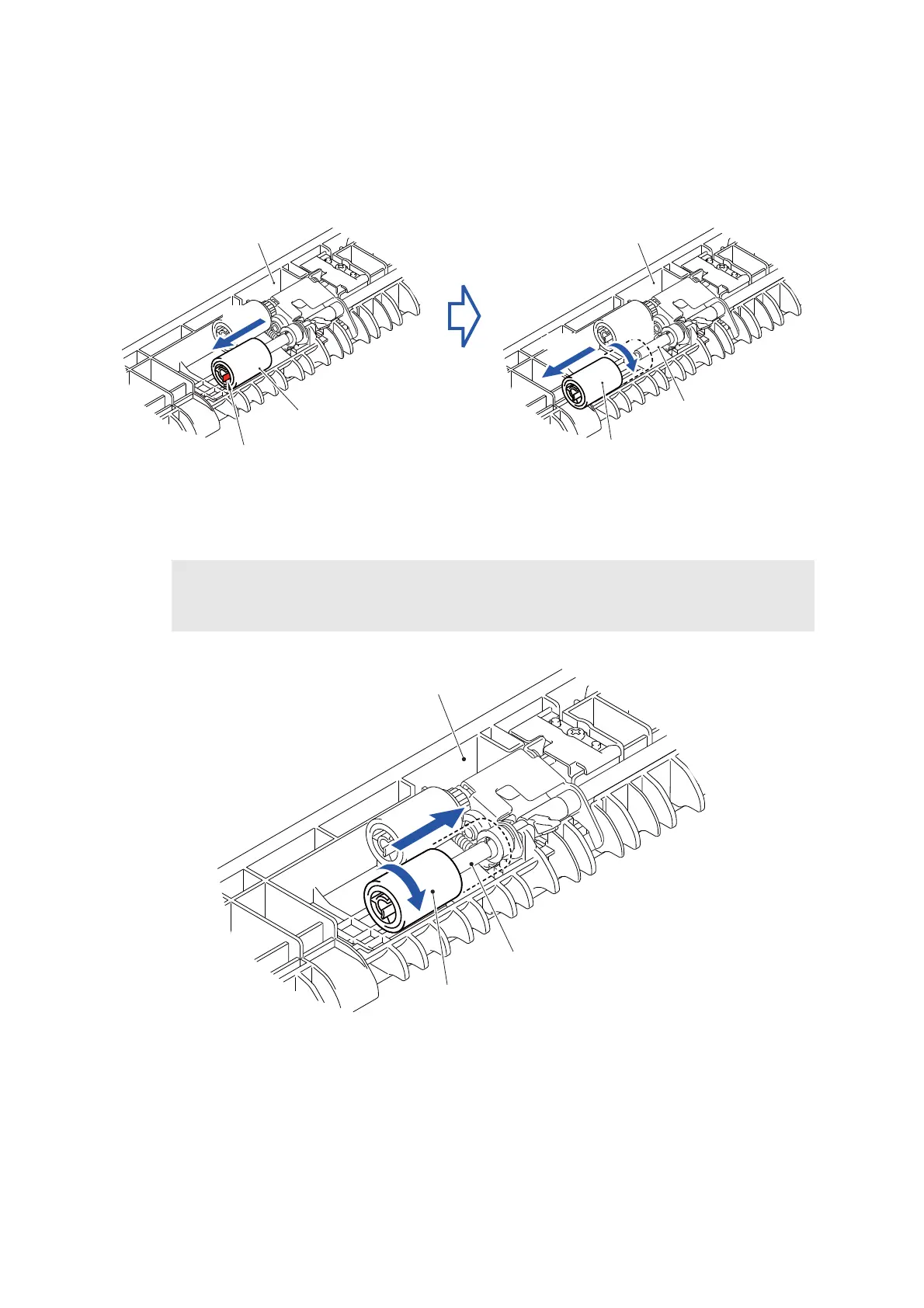

(23) Release the Hook and slide the T2 separation roller ASSY in the direction of the arrow.
(24) Rotate the T2 separation roller ASSY in the direction of the arrow 24a. Remove the T2
separation roller ASSY from the T2 paper feed drive shaft in the direction of the arrow 24b.
Fig. 3-299
Fig. 3-300
Assembling Note:
When assembling the T2 separation roller ASSY, assemble it by sliding it in the direction of
the arrow b as rotating the T2 separation roller ASSY in the direction of the arrow a.
Hook
T2 separation roller ASSY
23
24b
24a
T2 separation roller ASSY
T2 paper feed frame unit
T2 paper feed frame unit
T2 paper feed drive shaft
a
b
T2 separation roller ASSY
T2 paper feed frame unit
T2 paper feed drive shaft
