Brother MFC-L8650CDW - Page 366

3-202
Confidential

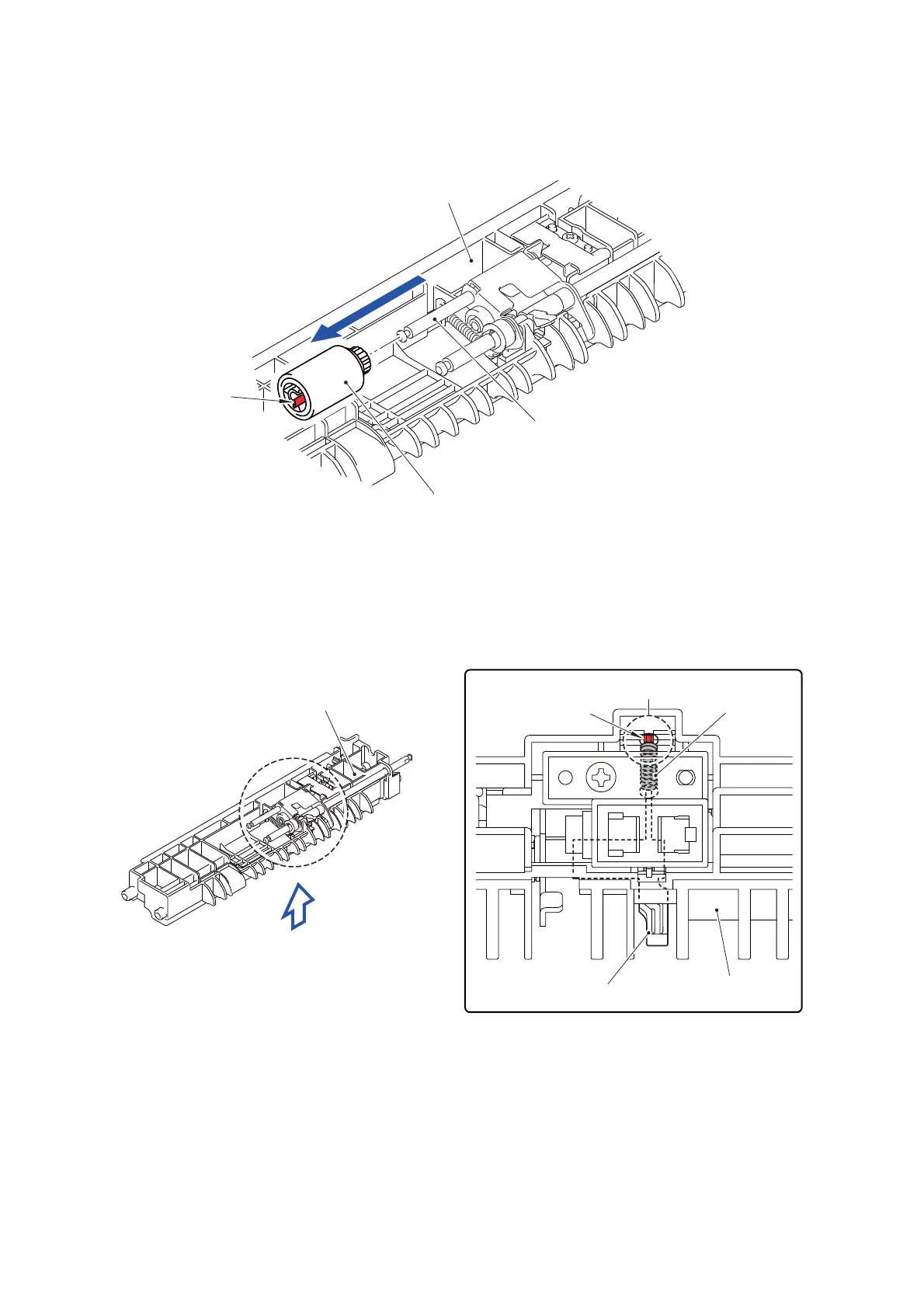

(25) Release the Hook and remove the T2 paper pick-up roller ASSY from the T2 paper feed
drive shaft.
Fig. 3-301
(26) Remove the “A” of the T2 edge actuator spring from the Hook of the T2 paper feed frame
unit.
Fig. 3-302
Hook
T2 paper feed frame unit
T2 paper pick-up roller ASSY
T2 paper feed drive shaft
“A”
Hook
A view
<A view>
T2 edge
T2 paper feed frame unit
T2 edge actuator
actuator spring
T2 paper feed frame unit
