7-36
Confidential

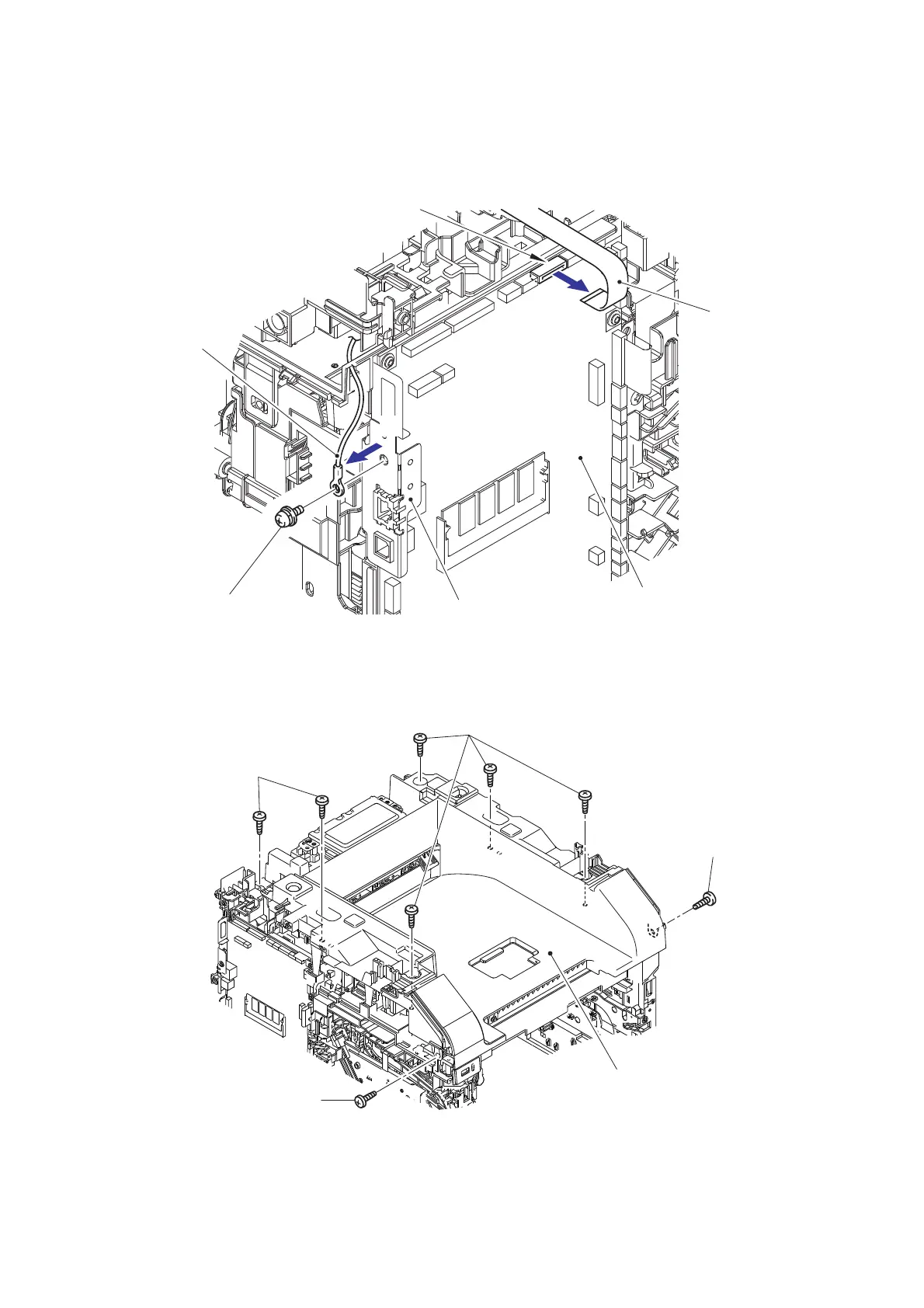

(28) Remove the Screw pan (S/P washer) M3.5x6 screw and remove the Modem FG harness
from the Main PCB plate.
(29) Disconnect the Modem flat cable (CN28) from the Main PCB ASSY.
Fig. 7-65
(30) Remove the eight Taptite bind B M4x12 screws from the Joint cover top.
Fig. 7-66
Screw pan (S/P washer) M3.5x6
Modem FG harness
Modem flat cable
Main PCB ASSY
CN28
<Back side>
29
28
Main PCB plate
<Front side>
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Joint cover top
