7-37
Confidential

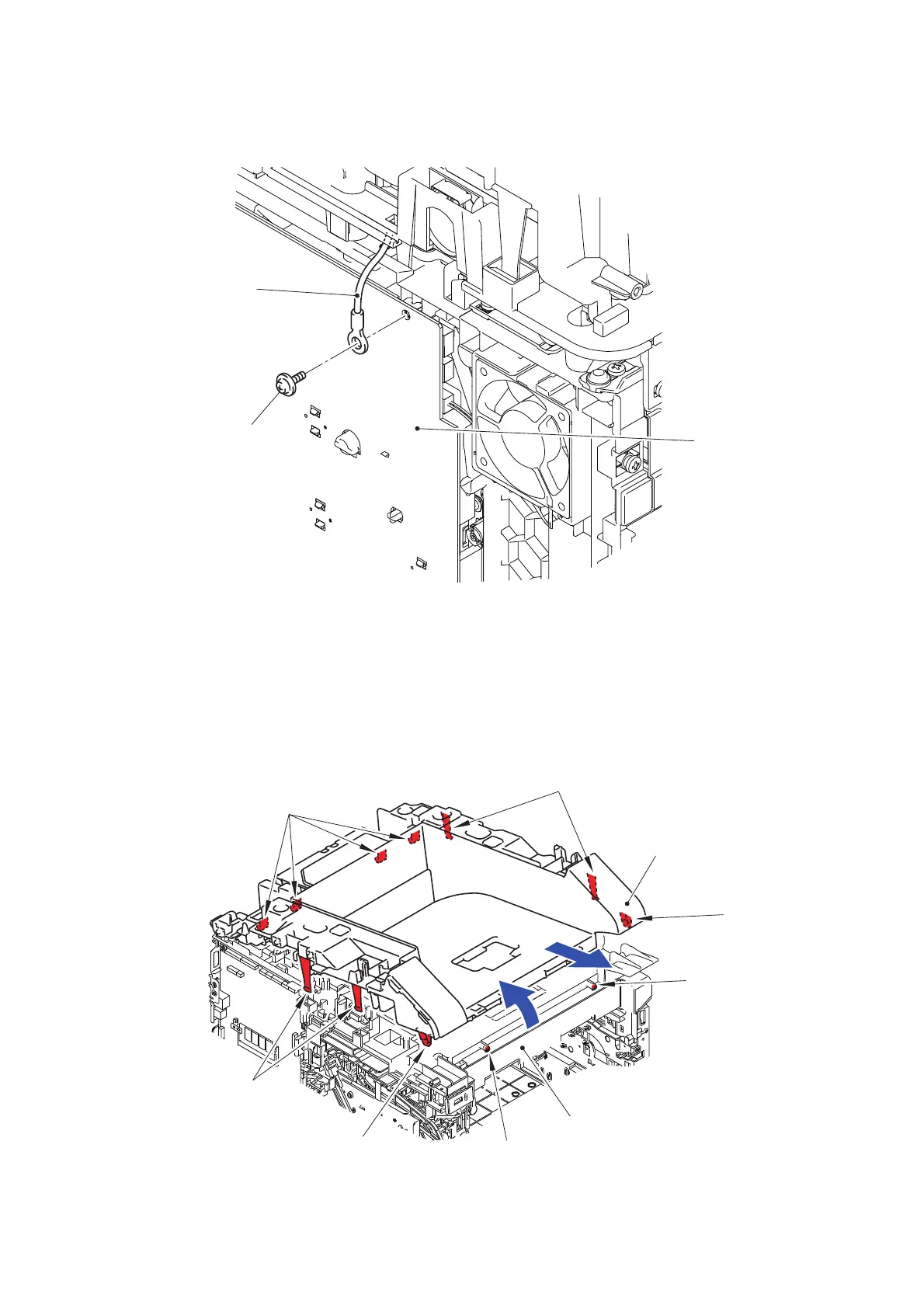

(31) Remove the Screw pan (S/P washer) M3.5x6 screw and remove the Modem ground
harness from the High-voltage power supply PCB ASSY.
Fig. 7-67
(32) Disconnect the wiring of the Modem ground harness.
(33) Release the two Hooks A and release the two Hooks B.
(34) Release the four Hooks C and lift the Joint cover top in the direction of the arrow.
(35) Slide the Joint cover top from the four Hooks D and remove it from the Main body.
Fig. 7-68
High-voltage power
supply PCB ASSY
<Right side>
Modem ground harness
Screw pan (S/P washer) M3.5x6
Joint cover top
Main body
<Front side>
35
34
Hook B
Hook A
Hook A
Hook B
Hook C
Hook D
Hook C
To Next Page
