(36) Disconnect the three Connectors (CN4, CN9 and CN11) from the Main PCB ASSY.

(37) Disconnect the wiring of the Main USB host harness ASSY.

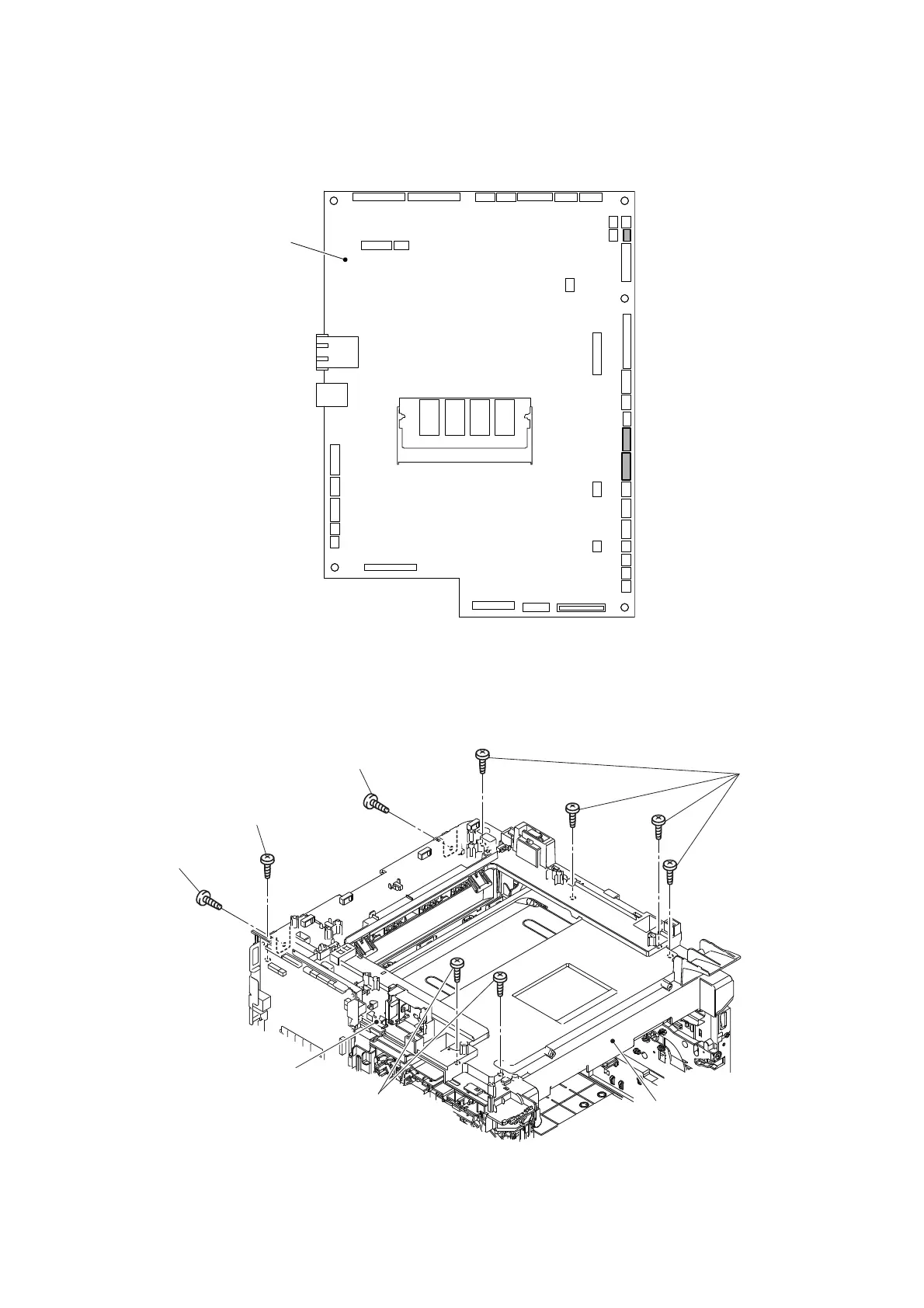

Fig. 7-69

(38) Remove the seven Taptite bind B M4x12 screws from the Joint cover base ASSY.

(39) Remove the two Taptite bind B M4x12 screws from the back of the Joint cover base ASSY.

Fig. 7-70

Main PCB ASSY

CN3

CN4

CN7

CN13

CN16

CN20

CN27

CN28

CN32

CN33

CN37

CN38

CN41

CN39

CN42

CN43

CN44

CN46

CN47

CN40

CN45

CN30 CN31

CN19

CN18

CN17

CN26

CN15

CN14

CN22

CN9

CN11

CN12

CN10

CN8

CN21

CN6

CN5

CN2

CN49

Joint cover base ASSY

Taptite bind B M4x12

Taptite bind

B M4x12

Main body

Taptite bind B M4x12
