III - 11

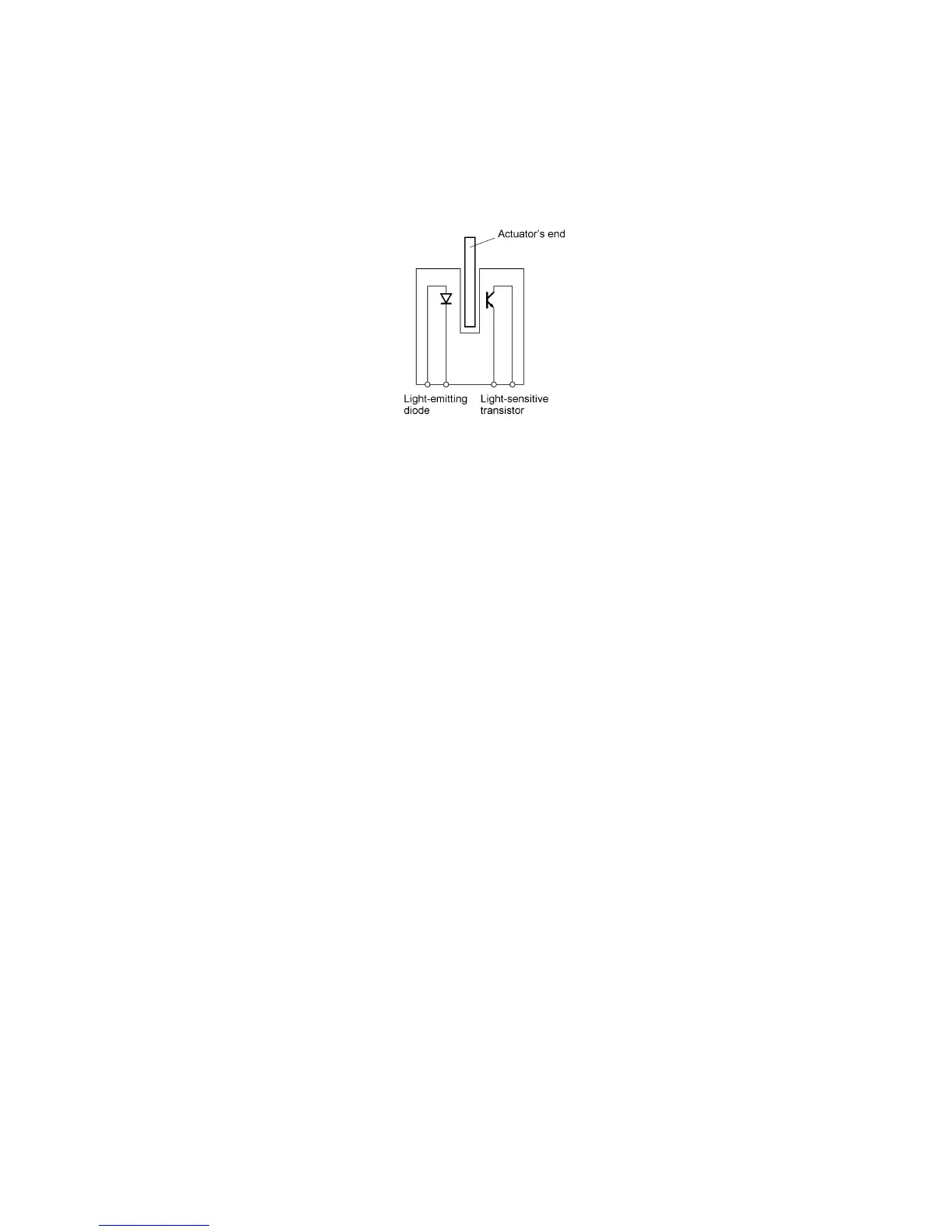

The above photosensors are a photo-interrupter consisting of a light-emitting diode and a light-
sensitive transistor. Each of them has an actuator separately arranged as shown on the next page.
