Brother MFC9700 - Disassembling the Scanner Unit

IV - 19

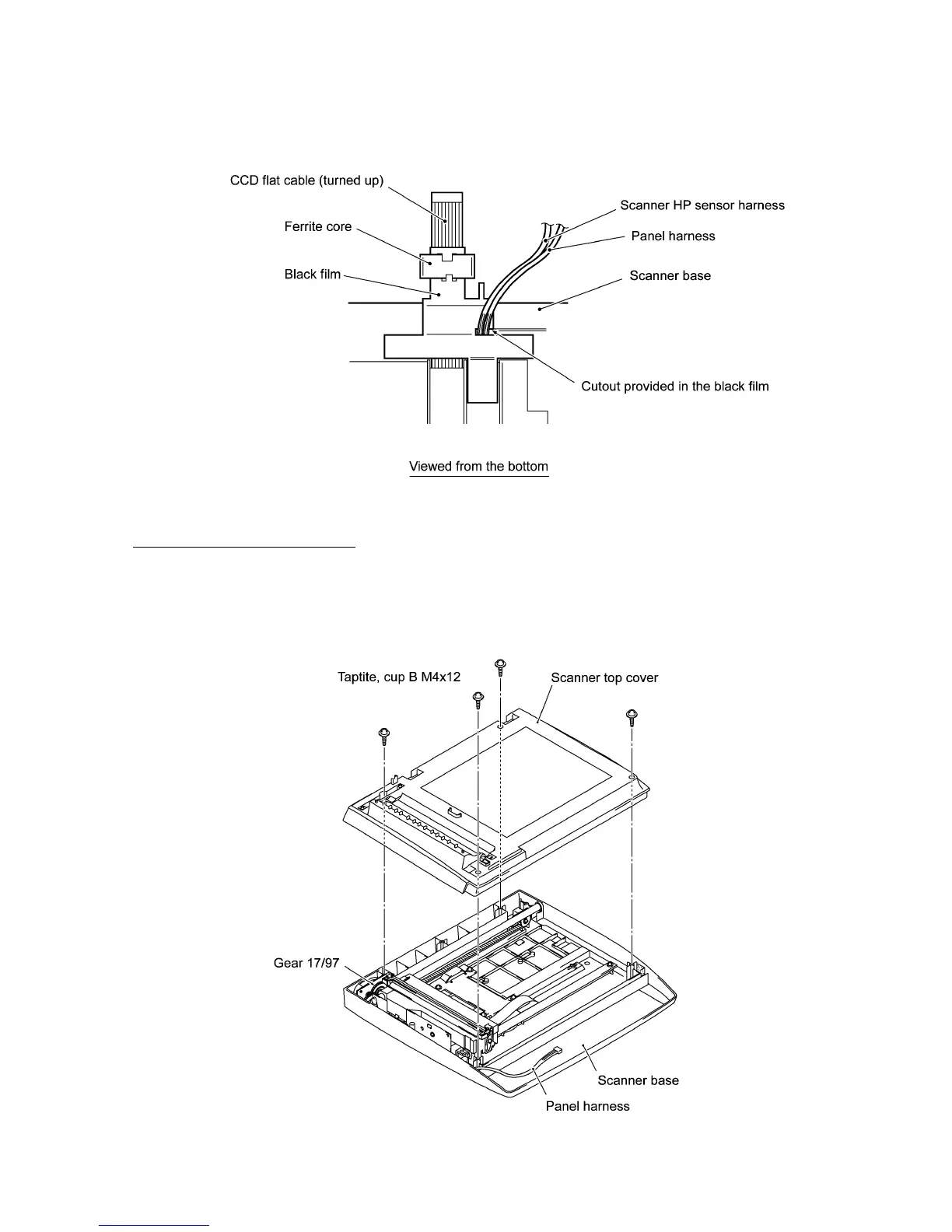

• When connecting the CCD motor harness, panel harness, and scanner HP sensor harness to
the relay PCB, route them as shown below.
[ Disassembling the Scanner Unit ]
The disassembling job of the scanner unit should be done in a clean room to prevent dust or dirt
from getting into the scanner unit.
1) Remove the four screws from the scanner top cover.
2) Separate the scanner top cover from the scanner base.
