I - 1
1. MACHINE OUTLINE
1.1 External Appearance and Weight

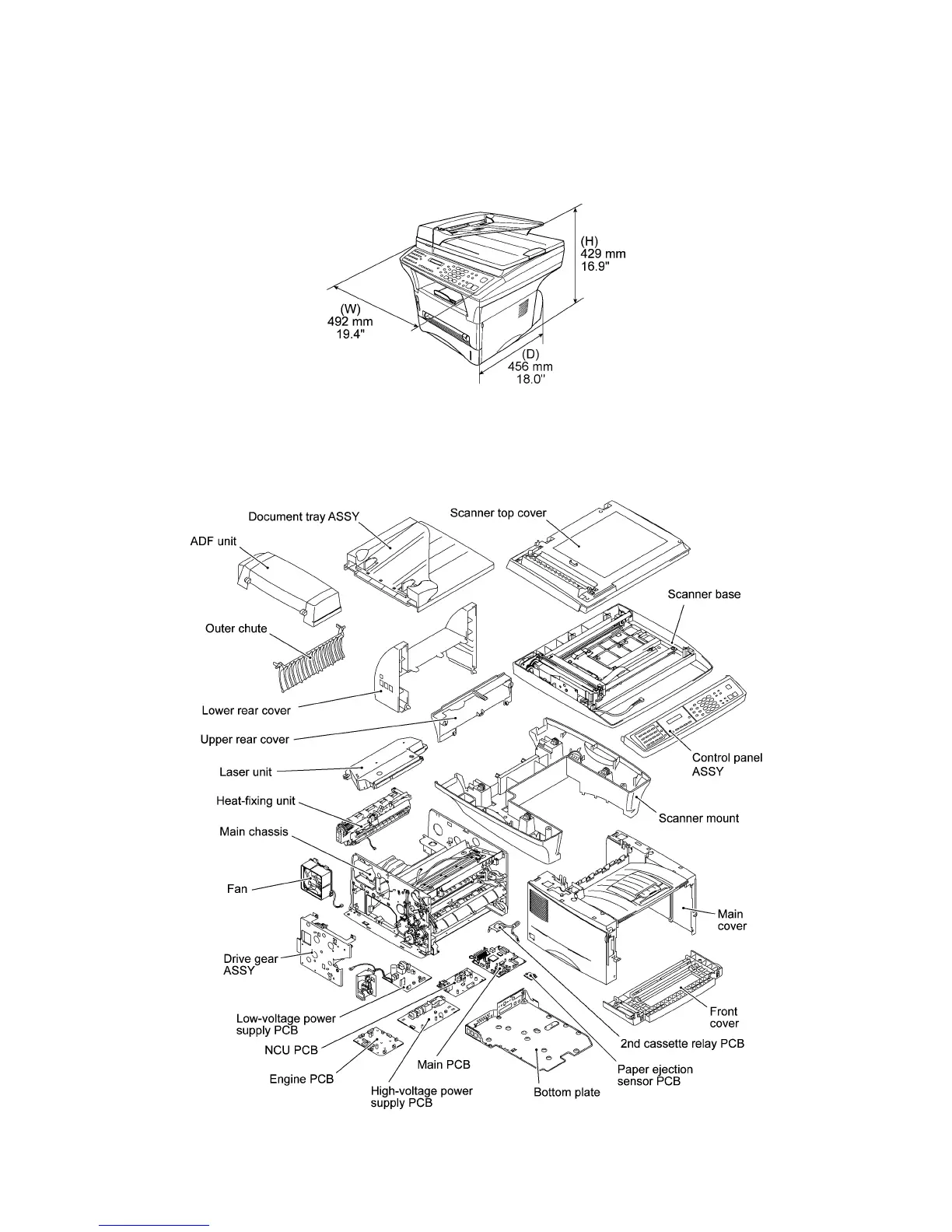

The figure below shows the machine appearance and approximate dimensions.
Weight: Machine proper 15.2 kg
Machine (incl. drum unit & toner cartridge) 17.0 kg
In package 21.2 kg
1.2 Components
The machine consists of the following major components:
