Brother MFC9700 - Outer Chute and Paper Pinch Rollers

IV - 33

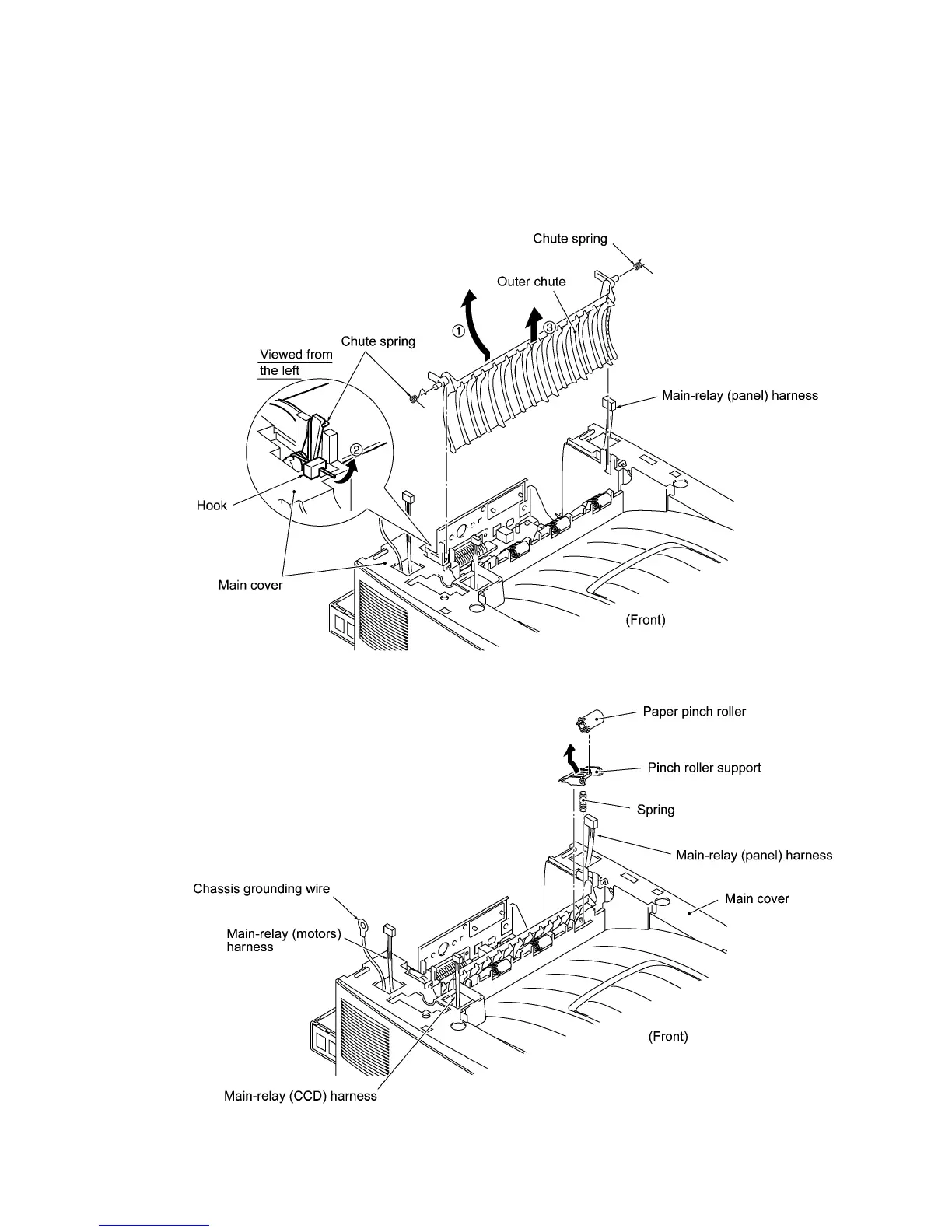

1.14 Outer Chute and Paper Pinch Rollers
(1) Pull up the outer chute and open it (in the direction of arrow ).
(2) Remove the chute springs from the hooks provided on the main cover (arrow ), then lift up
the outer chute (arrow ).
(3) Remove the paper pinch rollers, their supports, and their springs.
