IV - 2
n
nn

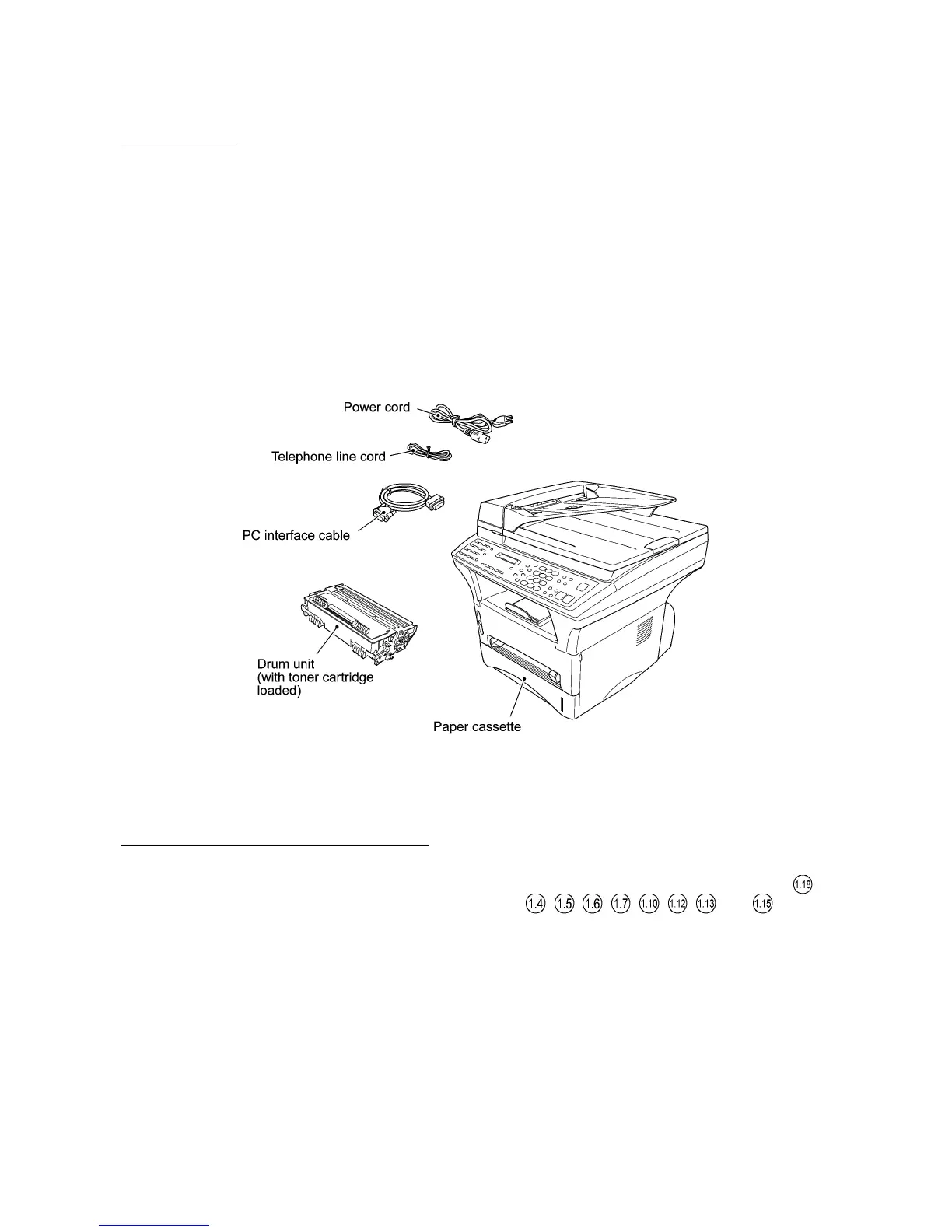

n Preparation
Prior to proceeding to the disassembly procedure,
(1) Unplug
- the power cord,
- the modular jack of the telephone line,
- the PC interface cable, and
- the modular jack of an external telephone set if connected. (Not shown below.)
(2) Remove
- the paper cassette and
- the drum unit (with toner cartridge loaded).
n
nn
n How to Access the Object Component
• On the next page is a disassembly order flow which helps you access the object components.
To remove the heat-fixing unit, for example, first find it on the flow and learn its number (
in
this case). You need to remove parts numbered
, , , , , , , and so as to
access the heat-fixing unit.
• Unless otherwise specified, the disassembled parts or components should be reassembled in
the reverse order of removal.
To Next Page
