Brother MFC9700 - Paper Sub Tray and Tray Holder

IV - 30
1.11 Paper Sub Tray and Tray Holder

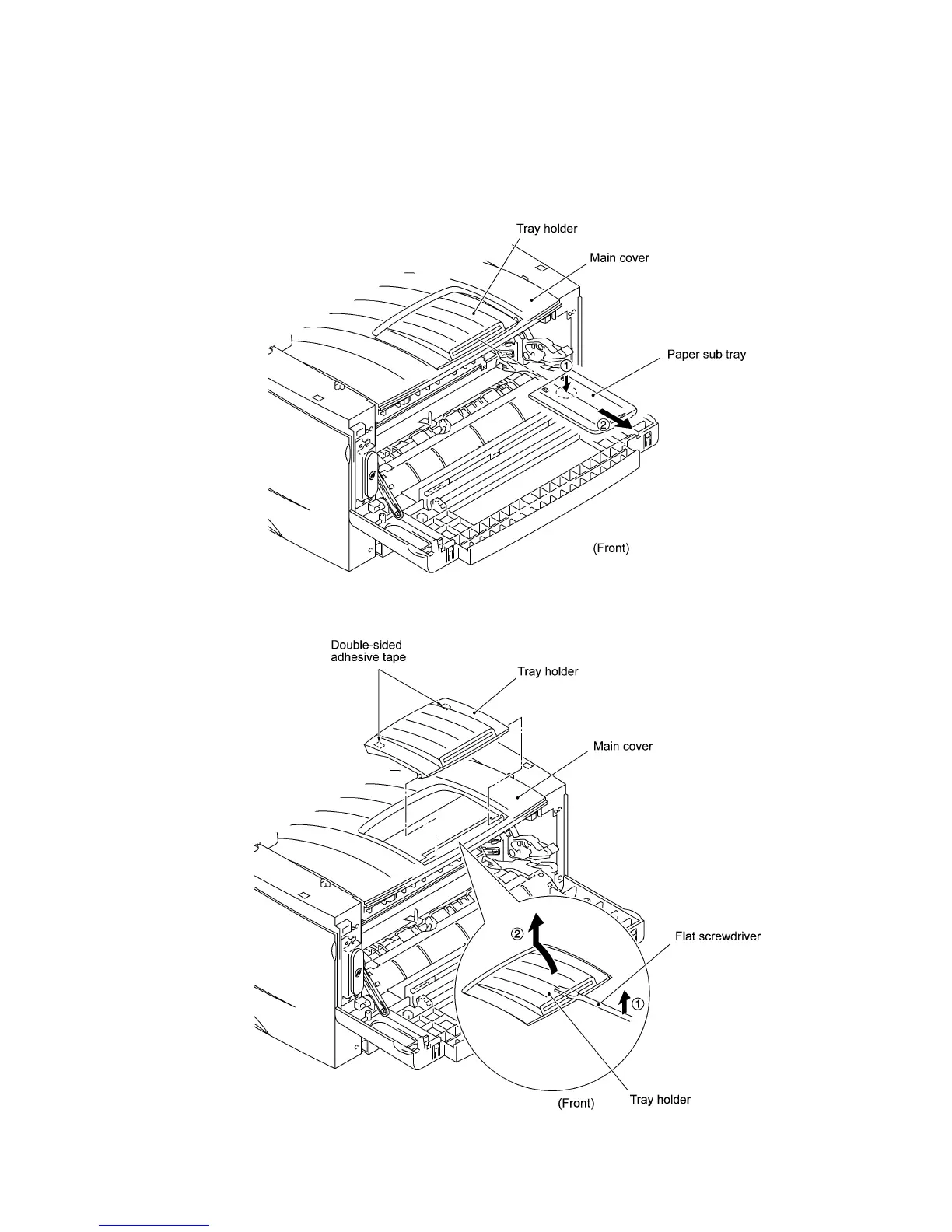

(1) Pull out the paper sub tray.
(2) While pushing down the center of the paper sub tray to warp it (in the direction of arrow
➀), pull
it out of the tray holder (arrow
➁).
(3) Insert the tip of a small flat screwdriver into the tray holder (in the direction of arrow ➀) and pull
up the tray holder (arrow
➁).
