Brother MFC9700 - Heat-Fixing Unit and FU Lamp

IV - 37
1.18 Heat-fixing Unit and FU Lamp

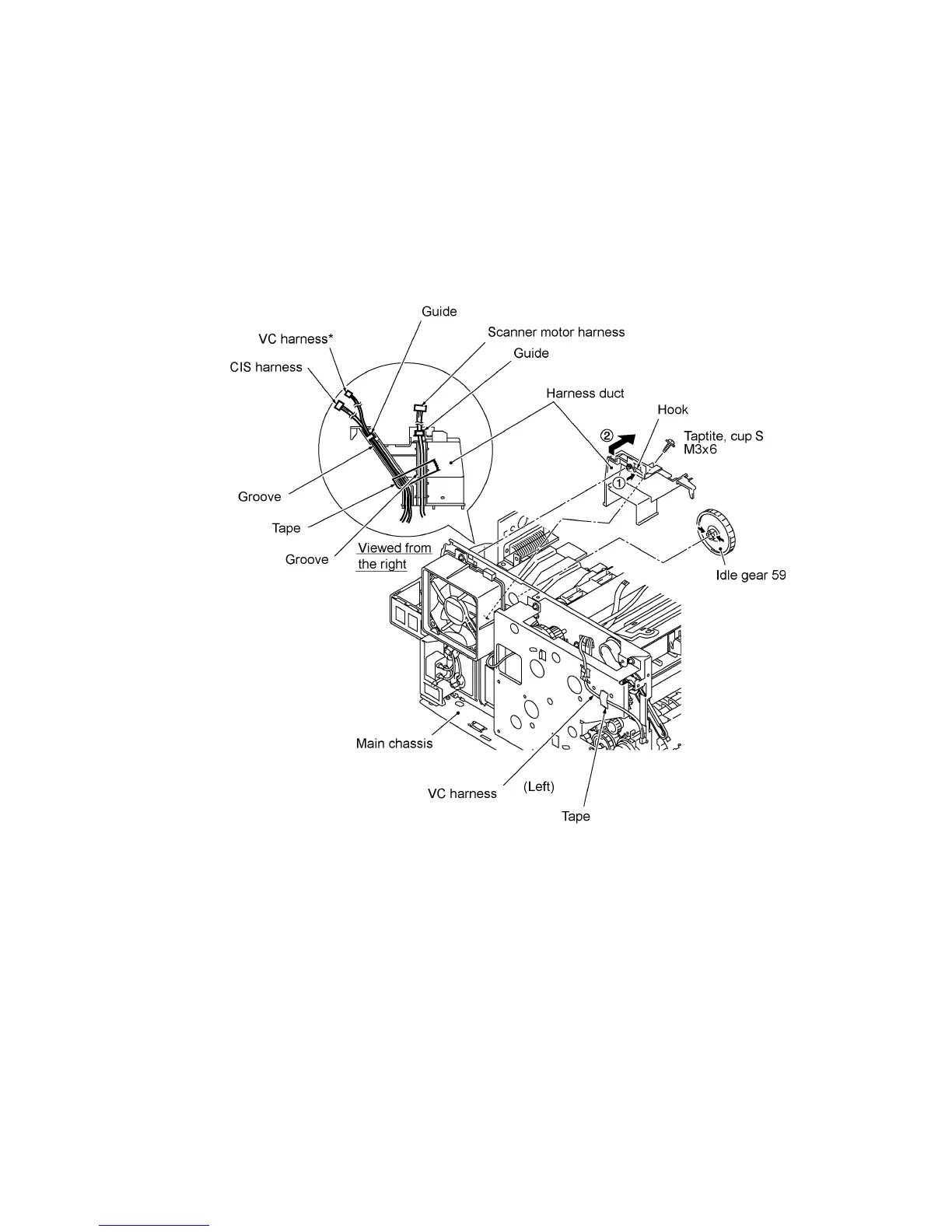

(1) Remove the screw from the harness duct.
(2) Peel off tape and take off the scanner motor harness, CIS harness, and VC harness* from the
harness duct.
(3) Unhook the harness duct from the main chassis in the directions of arrows Q and R.
*Provided on models supporting video capture
