Brother MFC9700 - Document Tray ASSY

IV - 6

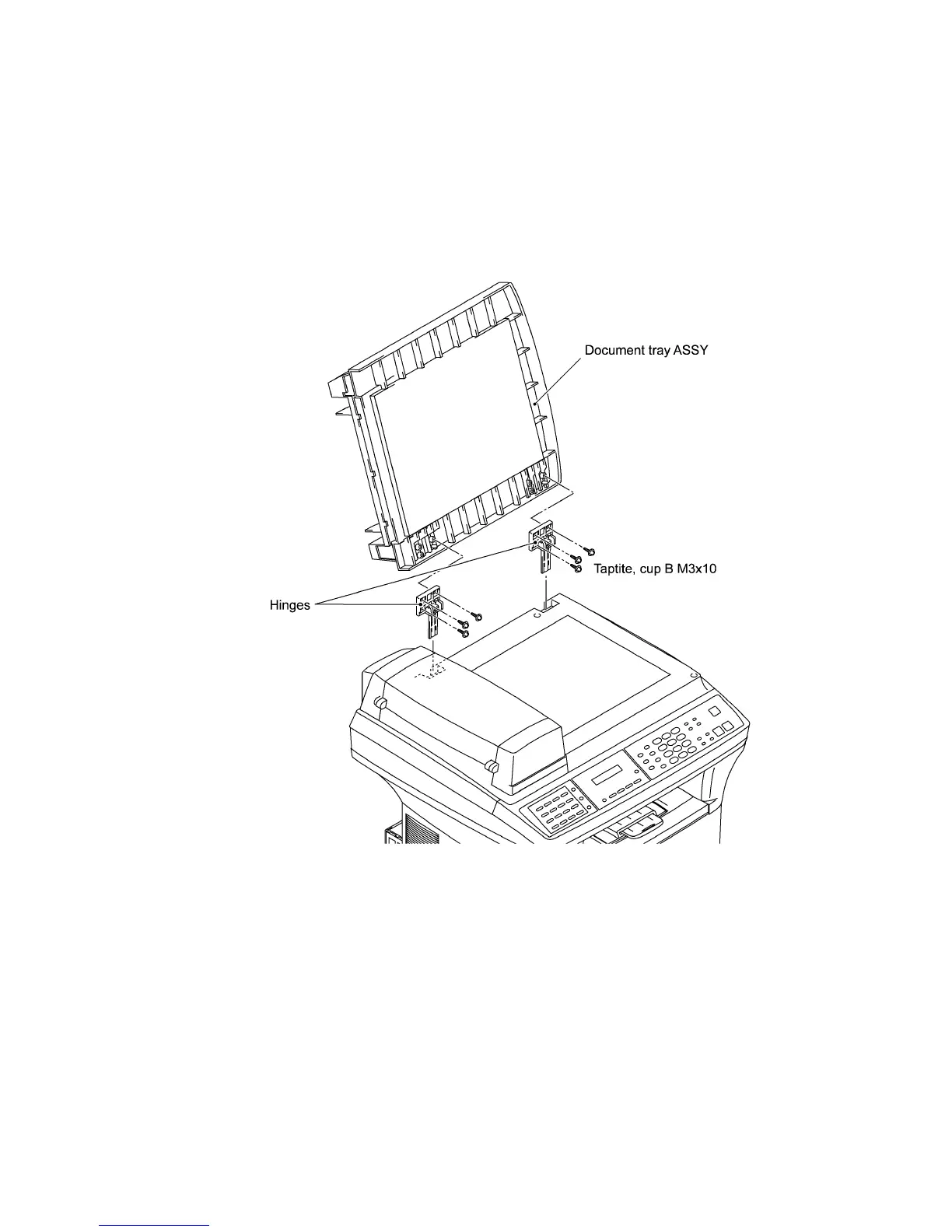

1.4 Document Tray ASSY
(1) Fully open the document tray ASSY.
(2) Lift up the document tray ASSY straight and pull the hinges up and out of the scanner unit.
(3) Remove the three screws from each of the hinges.
