IV - 34

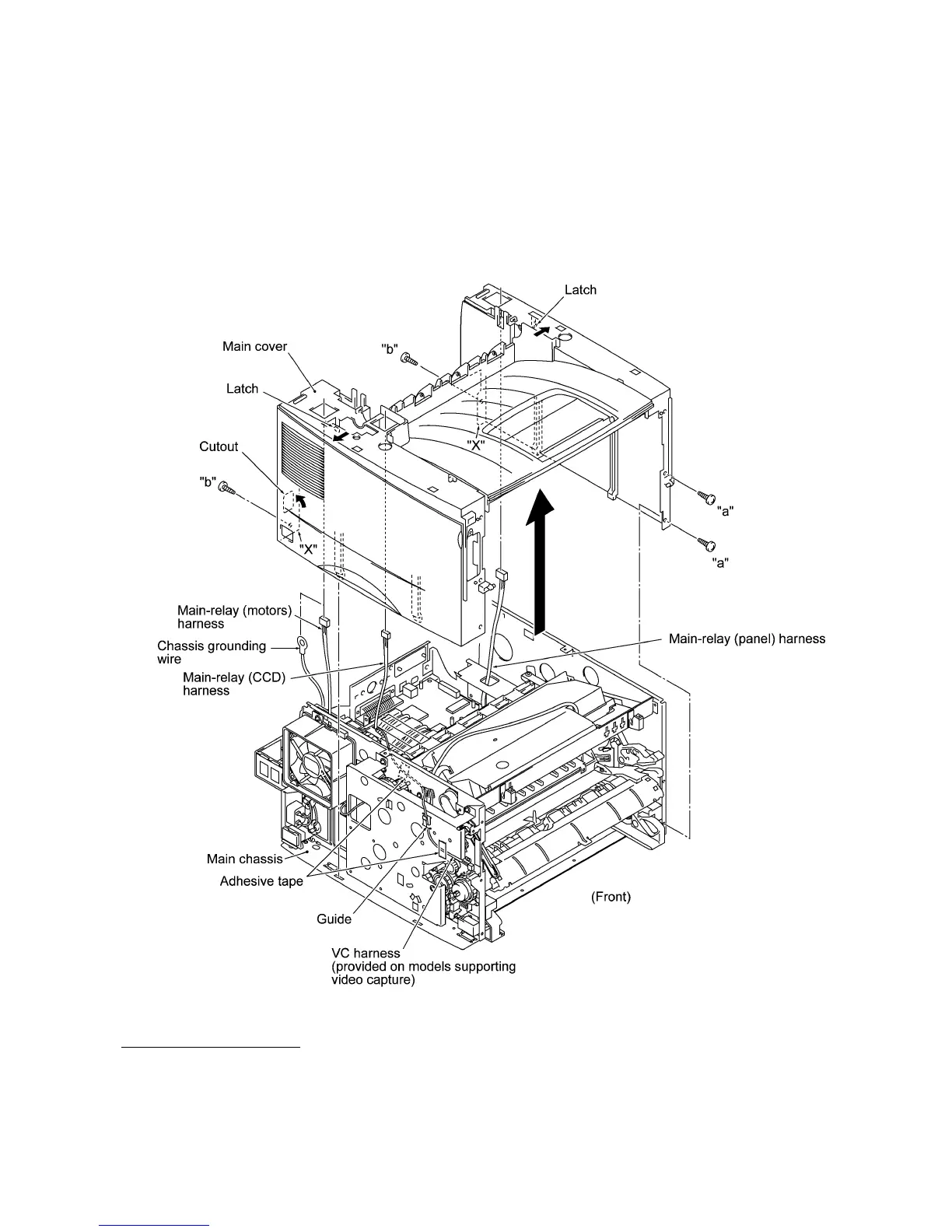

1.15 Main Cover
(1) Remove two screws "a" from the front side of the main cover.
(2) Remove two screws "b" from the rear side of the main cover, and then pull corner edges "X"
outwards to dislocate the main cover from the main chassis. Make sure that the cutout
provided in the main cover is dislocated from the power inlet.
(3) Unhook the two latches with the tip of a flat screwdriver, then lift up the main cover.
n
nn
n Reassembling Notes
• When reinstalling the main cover, route the main-relay (panel) harness, main-relay (CCD)
harness, and main-relay (motors) harness through the respective cutouts provided in the main
cover, as illustrated above.
"a" and "b": Taptite, bind S M3x8
To Next Page
